Standard Features
-
Taiwan Mill
-
Meehanite
Casting
-
Turcite B
Coating on X/Y ways
-
ISO 9002 certified
-
Taiwan made mill head
-
Mechanical step pulley 16 speeds from
90-5,600 rpm
-
Mechanical variable spindle speeds from
70-4,300 rpm
-
Heavy duty 3 HP AC spindle motor, 3 phase (
for ideal of tapping jobs, we
strongly recommend to take 3 phase mill with phase converter )
-
Heavy Duty high grade castings
-
Hardened & ground dovetail guideways
-
Hardened & ground table and Ground table
T-slots
-
Precision ground ACME Leadscrews
-
Chromed ground quill ( spindle )
-
Chrome dials
-
Adjustable ways
-
Hand brake for quick spindle stop
-
Tilting & rotating head
-
Manual or automatic quill feeds 0.0015 ,
0.003, 0.006 per spindle revolution
-
One shot lube system
-
Front and rear rubber chip guards, and (1)
manual draw bar
-
Tool box kit and leveling pads
-
Power source 220V , 3 phase (optional 440V, 3
Phase)
-
One year warranty for parts
-
Way covers
-
One draw bar
-
One shot lube
|
|
Free Insulation on
The Following Accessory Packages
Optional Equipment for

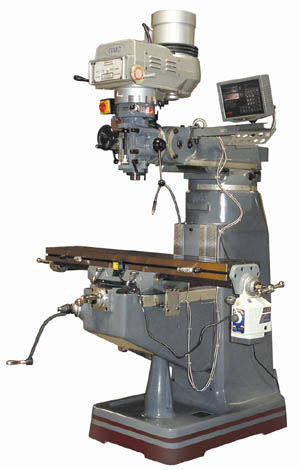

MMXGMM-949V Manual Knee Type Mills
- Power air draw bar, High Quality( USA)# HQR8
- Coolant system w/ pump, nozzles and hoses # FLD-COOL
- Base coolant/chip drop pan# COOL-PAN
- Power feed # FP-150X, x axis , free installation
- Power feed # FP-150Y, y axis, free installation
- Power feed # FP-150Z for knee up/down, free installation
- 4 raiser # RB4,
- 8 raiser # RB8
- Halogen work light # HLT
- Auto luber with alarm # AUTOLU , free installation
- 6 anglock vise, 8 opening, part# 900-0021-3
- 52 pcs clamping kit # CK52, ½-13NC stud, 5/8 T-slot
- 11 pcs R 8 collets set # R8, 1/8 7/8
- Phase converter # PAM-300HD, USA, for single phase
conversion
- Mill package # 3, incl 6 vise # 900-0021-3, collet set #
R8, clamping $395.00
Kit# CK-52, 20pc Titanium end mill
Set # 8000-0020, 29pc Titanium drill bit set # 5000-0001T
|
|
Specifications |
|
Model |
GMCGMM-949V |
|
Table Size |
9 x 49 |
|
Table Load Capacity |
650 LBS |
|
X Axis Travel |
35-1/2 |
|
Y Axis Travel |
12 |
|
Z Axis Travel |
16 |
|
Spindle Taper Type |
R 8 |
|
AC Spindle Motor |
3 HP |
|
Spindle speeds |
Variable-(70-4,200 rpm) |
|
Quill ( Spindle ) diameter |
3-3/8 |
|
Quill ( Spindle ) travel |
5 |
|
Ram travel |
12 |
| Table T-slot size |
5/8 x 3 slots |
| Head Swivel, R/H , L/H |
90 degree |
| Net weight, LBS |
2,650 |
|
|
|
