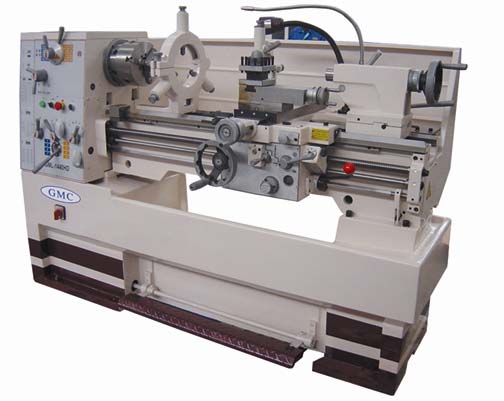

GMC GML-1440HD Heavy Duty Lathe

Features

• ISO 9002 certified

• Large spindle bore 2 1/16"

• Heavy duty spindle D1-6

• One-piece solid cast iron machine base

• Heavy duty guideway width 10 1/4"

• Heavy duty main motor- 6HP

• 16 spindle speeds from 45-1800rpm-45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm

• 40 kinds of inch threads, and 22 kinds of metric threads

• Threading and feeding rate change without changing gears

• Spindle is balanced, hardened and precision ground

• Spindle is supported at 3-point by high precision bearings

• All gears and shafts are hardened and precision ground

• Guideways induction hardened and precision ground

• Automatic lubrication system in headstock and feed box

• One year warranty for parts

Standard Equipment for Model GML-1440 Heavy Duty Lathe

• Taper turning attachment (factory installed)

• 8" 3-jaw chuck with set reversible jaws

• 10" 4-jaw chuck with set reversible jaws

• 12" face plate

• 5 1/2"" large steady rest with roller jaws

• Oil pump on Apron for all guideways and leadscrews

• 2" follow rest

• Removable gap

• 4-way tools post

• Coolant System

• Foot brake

• Halogen work light and coolant system

• Full length splash guard

• (2) dead centers and (1) reducing sleeve MT6/MT4

• Thread chasing dial

• Tool box and leveling pads

Optional Equipment for GML-1440 Heavy Duty Lathe

• 10" drive plate #DPD610

• Micro carriage stop #MCS-GML-1440HD

• DRO for #1440HD, NEWALL #C80 #NW840, 2axis, (factory installed, no charge)

• DRO, #1440HD#KA, (factory installed, no charge)

• 5-C Hand lever type collet closer, #5C (factory installed, no charge)

• 33pc 5C collet set, from 1/16" to 1 1/16" by 32ndth, #900-0014

• Taper turning attachment #TA-GML1440 (factory installed, no charge)

• China ALORIS type QC tolol post set #900-0051-200, 6pcs

• Live center MT3 #900-0050-04

• 5pc Indexable carbide turning set #2003-0004

• 3/8" carbide insert #2003-0014
