Features
-
ISO 9002 certified
-
Large spindle bore 2 1/16"
-
Heavy duty spindle D1-6
-
One-piece solid cast iron machine base
-
Heavy duty guideway width 10 1/4"
-
Heavy duty main motor- 6HP
-
16 spindle speeds from
45-1800rpm-45/70/90/108/140/165/215/255/330/385/510/585/770/900/1170/1800rpm
-
40 kinds of inch threads, and 22 kinds of metric threads
-
Threading and feeding rate change without changing gears
-
Spindle is balanced, hardened and precision ground
-
Spindle is supported at 3-point by high precision bearings
-
All gears and shafts are hardened and precision ground
-
Guideways induction hardened and precision ground
-
Automatic lubrication system in headstock and feed box
-
One year warranty for parts
|
|

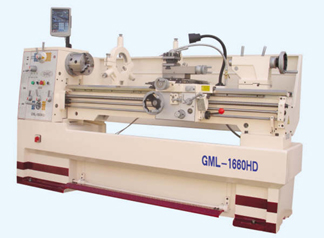

Standard Equipment For GML-1640HD & GML-1660HD Heavy Duty
Lathes
-
Taper turning attachment (factory installed)
-
8" 3-jaw chuck with set reversible jaws
-
10" 4-jaw chuck with set reversible jaws
-
12" face plate
-
5 1/2"" large steady rest with roller jaws
-
Oil pump on Apron for all guideways and leadscrews
-
2" follow rest
-
Removable gap
-
Coolant System
-
4-way tools post
-
Foot brake
-
Halogen work light and coolant system
-
Full length splash guard
-
(2) dead centers and (1) reducing sleeve MT6/MT4
-
Thread chasing dial
-
Tool box and leveling pads
Optional Equipment For GML-1640HD & GML-1660HD Heavy
Duty Lathes
-
10" drive plate #DPD610
-
Micro carriage stop #MCS-GML-1440HD
-
DRO, #1640HD#KA, (factory installed, no charge)
-
DRO for #1640HD #KA , (factory installed, no charge)
-
NEWALL DRO # GMCNW860, NEWALL DRO # C80 for GMC GML-1660HD
lathe
-
5-C Hand lever type collet closer, #5C (factory installed,
no charge)
-
33pc 5C collet set, from 1/16" to 1 1/16" by 32ndth,
#900-0014
-
China ALORIS type QC tolol post set #900-0051-200, 6pcs
-
Live center MT3 #900-0050-04
-
5pc Indexable carbide turning set #2003-0004
-
3/8" carbide insert #2003-0014
|
|
Specifications |
| Model |
GML-1640HD |
GML-1660HD |
| Max.
swing over bed |
16-1/16” |
16-1/16” |
| Max.
length of workpiece |
40” |
60" |
| Max.
swing over cross slide |
10-1/16” |
10-1/16” |
| Max. Swing in gap
|
23-1/4” |
23-1/4” |
| Width
of Bed |
10-1/4” |
10-1/4” |
|
Effective length in gap to spindle |
8-1/2”
|
8-1/2”
|
|
Effective length in gap to chuck jaws |
3-1/2”
|
3-1/2”
|
| Spindle
bore |
2-1/16” , D1-6
|
2-1/16” , D1-6
|
| Taper
of spindle center |
M.T.#
6 (with MT6/MT4 sleeve) |
M.T.#
6 (with MT6/MT4 sleeve) |
| Spindle
speeds |
45-1,800 rpm / 16 steps |
45-1,800 rpm / 16 steps |
|
Longitudinal feeds |
0.0018-0.07 IPR, 42 kinds |
0.0018-0.07 IPR, 42 kinds |
| Cross
feeds |
0.0009-0.03 IPR, 42 kinds |
0.0009-0.03 IPR, 42 kinds |
| Inch
threads |
70-2
TPI, 45 kinds |
70-2
TPI, 45 kinds |
| Metric
threads |
0.20-14 mm, 39 kinds |
0.20-14 mm, 39 kinds |
| Module
threads |
0.3-3.6 mm, 18 kinds |
0.3-3.6 mm, 18 kinds |
| Diametral
pitch threads |
8-40
DP , 21 kinds |
8-40
DP , 21 kinds |
| Max.
travel of top slide |
4-1/4” |
4-1/4” |
| Max.
travel of cross slide |
8-1/2” |
8-1/2” |
|
Diameter of tailstock quill |
2-1/16” |
2-1/16” |
| Max.
travel of tailstock quill |
5” |
5” |
| Taper
of tailstock quill center |
M.T. #
4 |
M.T. #
4 |
| Main motor
|
6 HP,
220V only, 3 phase |
6 HP,
220V only, 3 phase |
| Coolant
pump motor |
1/8
HP, 220V, 3 phase |
1/8
HP, 220V, 3 phase |
| Net
weight, approx. |
4,150
LBS |
4,850
LBS |
| Overall
dimensions, LxWxH |
79” x
38” x 56” |
100” x
38” x 56” |
|
|
|
|
GMCGML-1640VS
$7,850.00
16x40", variable speed from 25, 3,000 rpm, 7.5 HP, 220V, 3 phase or 1 phase ::: FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!"
|
|
GMCGML-1660VS
$8,850.00
16x60", variable speed from 25-3,000 rpm, 7.5 HP, 220V, 3 phase or 1 phase ----> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!
|
|
|
|
|
|
|
|
|
|
|
GMCOEM-1040
$1,324.24 $1,126.05
OEM DRO for GT-1640DB/ GT-1840DB ====>FREE FREIGHT On This Item Only When Ordered with a GMC Lathe-Otherwise See UPS Chart For Freight Rate
|
GMCOEM-1060
$1,593.12 $1,354.69
OEM DRO for GT-1660DB / GT-1860DB ====>FREE FREIGHT On This Item Only When Ordered with a GMC Lathe-Otherwise See UPS Chart For Freight Rate
|
GMC5C-D1-6
$799.92 $680.20
5C chuck for 1640HD/ 1660HD / 1440HD ====>FREE FREIGHT On This Item Only When Ordered with a GMC Lathe-Otherwise See UPS Chart For Freight Rate
|
