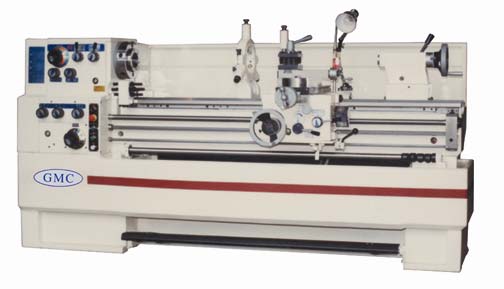

GMC GT-1640DB/GT1660DB Lathes

Features

• ISO 9001 certified

• Large spindle bore 3 1/16"

• Heavy duty spindle D1-8

• One-piece soled cast iron machine base

• Heavy duty guideway width 11 13/15"

• Heavy duty main motor 7.5HP

• 12 spindle speeds from 24-1,600rom, speeds-32/55/85/120/185/275/350/400/605/910/1330/2000 rpms

• 40 kinds of inch threads, and 41 kinds of metric threads

• Threading and feeding rate change without changing gears

• Automatic kick-out longitudinal carriage stop system

• Spindle is balanced, hardened and precision ground

• Spindle is supported at 3-point by height precision bearings

• All gears and shafts are hardened and precision ground

• Automatic lubrication system in headstock and feed box

• One year warranty for parts

Standard Equipment for GT-1640/GT-1660DB

• Taper turning attachment (factory installed, no charge)

• 10" 3-jaw chuck with set reversible jaws

• 12" 4-jaw chuck with set reversible jaws

• 16" face plate

• 8" drive plate

• 3/4"-5 1/2" large steady rest with roller jaws3: follow rest

• Removable gap

• 4-wat tools post

• Foot brake

• Work light and coolant system

• Manual lube pump on apron for all guideways and leadscrews

• Automatic kick-out longitudinal carriage stop system

• Full length splash guard

• (2) dead centers and (1) reducing sleeve

• Thread chasing dial

• Tool box and leveling pads

Optional Equipment for Heavy Duty Lathes

• Micro Carriage Stop #MCS-GT18 (turret type)

• DRO for #1640, NEWALL (England), 2 axis, (factory installed, no charge)

• DRO for #1660, NEWALL C8- (England), 2 axis, (factory installed, no charge)

• 5-C Hand lever type collet closer, (factory installed, no charge)

• 33pc 5C collet set, from 1/16" to 1 1/16" by 32ndth, #900-0014

• Taper turning attachment #TA-GT18, (factory installed, no charge)

• China ALORIS type QC tool post set #900-00510-400, 6pcs

• Live center for tailstock MT#4, #900-0050004

• 5pc Indexable carbide turning set #2003-0004

• 3/8" carbide insert #2003-0014
