Rotary Screw Series

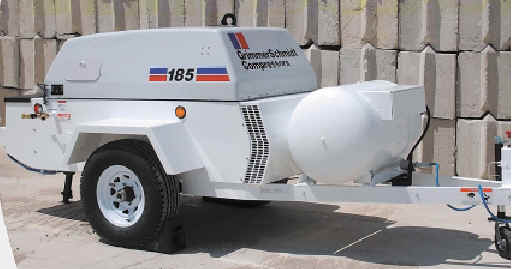

The GrimmerSchmidt rotary screw compressor, model 185P, is
powered by a CARB certified (California Air Resource Board) IMPCO 3.0 liter, 4
cylinder propane engine and fuel management
system. It provides emission levels significantly lower than new allowable
limits. The compressor is ideally suited for use in parking garage and tunnel
repair or by anyone concerned about on site pir pollution. In addition to being
powered by clean burning engines, these compressors were designed with standard
features such as large fuel capacity., full gauge panel and generous tool
storage. The design also features hinged canopy for easy access to engine. compressor
compartment. The design drastically lowers the noise level for a very quiet
operating compressor.
|
Standard Features
Engine
Control & Instrumentation
-
Start/run valve
-
Single motion rotary start switch
-
Full gauge panel: air pressure, engine temperature, engine
oil pressure, ammeter and hourmeter
Filters
Electric System
|
Frame & Enclosure
-
Combination ball/pintle hitch
-
Lifting bail
-
Safety chains
-
Keyed lock on instrument panel door
-
Flexible fenders
-
Jackstand
-
30 gal. fuel tank
-
Leaf spring suspension
-
Noise level below 76 dBA at 7 meters
-
Lockable, double walled fiberglass hood
-
Unitized body, 7 and 10 gauge steel
-
Powder coat finish
Discharge Valves
Safety Systems
-
ASME air receiver tank
-
Pressure relief valve,
-
Shutdown- low engine oil pressure, high coolant
temperature
and high compressor oil temperature
-
Antifreeze- 50/50 mixture
|
|
Optional Features
-
80 gal. fuel tank
-
Adjustable height hitch
-
Brakes
-
Hose reels
-
Line oiler
-
Excess flow cutoff valves
-
Retractable/adjustable third wheel
-
Stop, tail, and turn indicators
-
Special paint
-
Tachometer
-
150 psig
-
Voltmeter
-
Extended warranty
|
Also Available
-
Compressed air and gas boosters
-
CNG fueling equipment
-
Natural gas powered compressors
-
High pressure air and gas compressors
|
|
|
Full Instrumentation
Full gauge panel (engine temperature, engine oil pressure, ammeter and
hourmeter) allows monitoring of equipment status. |
Large Rear Toolbox
Large rear mounted toolbox for reduced back strain when loading and
unloading heavy tools and protecting engine compressor from damage |
|
|
