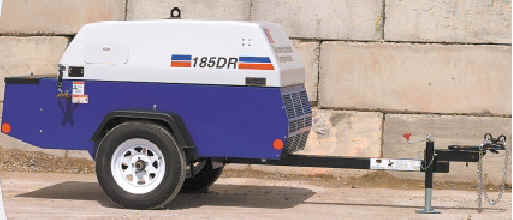

185DR/210DR/250DR
185/210/250 CFM Rotary Series
This rotary series provides a lighter weight, more maneuverable compressor.
The lockable hinged fiberglass hood reduces noise levels, makes routine
maintenance easier and never needs painting. additional no rust components are
the flexible fenders and instrument panel door. The heavy gauge steel frame is
powder coated for a lasting finish.
Grimmer Schmidt manufactures as wide range of air and natural
gas compressors, engine or electric motor driven, for industrial and
construction applications. The reciprocating and rotary compressors provide a
choice to insure the best compressor for each application.
|
Standard Features
Compressor
Engine
Controls & Instrumentation
-
Start/run valve
-
Single motion rotary start switch
-
Full gauge panel; air pressure, engine temperature, engine
oil pressure, ammeter
Filters
Electric System
|
Frame & Enclosure
-
Combination ball/pintle hitch
-
Lifting bail
-
Safety chains
-
Keyed lick on instrument panel door
-
Flexible fenders
-
Jackstand
-
Translucent fuel tank
-
Leaf spring suspension
-
Noise level below 76 dBA at 7 meters
-
Lockable, double-walled fiberglass hood
-
Unitized body, 7 and 10 gauge steel
-
Powder coat finish
Discharge Valves
Safety System
-
ASME air receiver tank
-
Pressure relief valve
-
Shutdowns- low engine oil pressure, high coolant temperature
and high compressor oil temperature
-
Antifreeze- 50/50 mixture
Warranty
|
|
Optional Features
-
Low fuel shutdown
-
Adjustable height hitch
-
Brakes
-
Hose reels
-
Line oilier
-
Excess flow cutoff valves
-
Retractable/adjustable third wheel
-
Stop, tail, and turn indicators
-
Special paint
-
Tachometer
-
150 psig
-
Voltmeter
-
Extended warranty
|
Also Available
-
Compressed air and gas boosters
-
CNG fueling equipment
-
Natural gas powered compressors
-
High pressure air and gas compressors
-
A full line of contractor air tools
|
|
|
Full Instrumentation
Full gauge panel (engine temperature, engine oil pressure, ammeter and
hourmeter) allows monitoring of equipment status. |
Large Rear Toolbox
Large rear mounted toolbox for reduced back strain when loading and
unloading heavy tools and protecting engine compressor from damage |
|
|
|
Hoods
The hoods are equipped with gas-assisted lift cylinders providing easy
access for inspection, cleaning of coolers and servicing |
|
