375/800/900/1000
375/800/900H/1000 Air Compressors
This rotary series features large air ends and easily towed portable packages
,providing longevity and lower transportation costs. The compressors are powered
by popular industrial diesel engines supported worldwide. Removable drawbars and
axles make conversions of portable units and back to portable units to skid
mounted units and back to portables easy for offshore and truck mounted
applications. All the portable compressors are provided with EZ lube bearings
and the 800, 900H and 1000 have surge brakes with auto back ups as a standard
feature.
|
Standard Features
Engine
Control & Instrumentation
-
Start and run valves
- Single motion rotary start switch
- Full gauge panel: air pressure, engine temperature, engine oil pressure,
ammeter and hourmeter, tach on 800, 900H, 1000
Filters
Electric System
|
Frame & Enclosure
Discharge Valves
Safety Systems
-
ASME air receiver tank
- Pressure relief valve
- Shutdowns- low engine oil pressure, high coolant temperature and high
compressor oil temperature
- Antifreeze- 50/50 mixture
Warranty
|
|
Optional Features
-
Low fuel shutdown
- Adjustable height hitch
- Brakes (375)
- Hose reels
- Line oiler
- Excess flow cutoff valves
- Retractable/adjustable third wheel
- Stop, tail, and turn indicators
- Special paint
- Tachometer (375)
- Voltmeter
- Extended warranty
|
Also Available
-
Compressed air and gas boosters
-
CNG fueling equipment
-
Natural gas powered compressors
-
High pressure air and gas compressors
-
A full line of contractor air tools
|
|
|

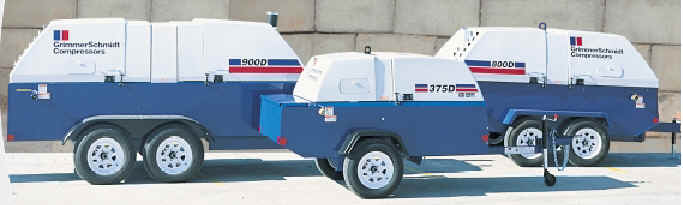

The design provides easy access for servicing |
| These large cfm compressors can all be easily towed with
1/2 ton pick-ups. Heavy duty, free backing surge brakes are standard on
the 899, 900H, and 1000 models.
|
|
|
Specifications |
| Model |
Delivery
@ Rated
psig
(CUm/min) |
Pressure Range-psig |
Operating Range RPM |
Manufacture @ Model |
BHP Gov. RPM |
No. Cyl |
Piston Disp. CID |
Eng. Oil
Cap. Qts. |
Coolant Cap. Gal. |
Fuel Cap. |
Weight (dry) lbs |
Weight
(wet) lbs. |
| 375 |
375 |
80-125 |
1600-2350 |
John Deere |
108 |
4 |
248 |
8 |
8 |
40 |
2840 |
3235 |
| 800 |
800 |
80-125 |
1600-2500 |
Cummins |
215 |
6 |
504 |
24 |
11 |
100 |
5053 |
5796 |
| 900H |
900 |
80-125 |
1200-1800 |
Caterpillar |
300 |
6 |
638 |
25 |
16 |
118 |
7800 |
8600 |
| 1000 |
1000 |
80-125 |
1200-1900 |
Caterpillar |
300 |
6 |
638 |
25 |
16 |
118 |
7800 |
8600 |
|
