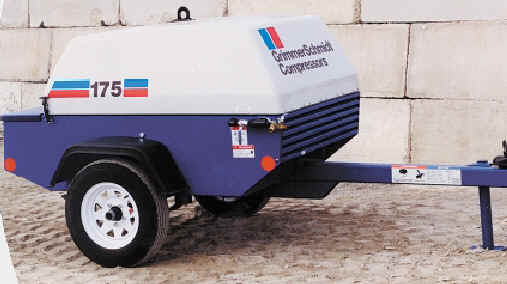

Grimmer-Schmidt Gas Air Compressors

125G/150G/175G

MonoBlock Compressors

MonoBlock compressors feature the lowest initial cost and a design which is more compact, quieter and lighter weight than competitive models. Parts are readily available throughout the US and Canada. Operators of pneumatic tools benefit as the MonoBlock provides better fuel economy on light and intermittent loads.

GrimmerSchmidt manufactures a wide range of air and natural gas compressors, engine or electric motor driven, for industrial and construction applications. The reciprocating and rotary compressors provide a choice to insure the best compressor for each application.

Standard Features
Compressors

  • Water cooled head and valves

  • Large concentric compressor valves
  • Aftercooler, air to air

Controls & Instrumentation

  • Electronic ignition

  • Manual choke
  • PaceAir control
  • Start/run valve
  • Single motion rotary start switch
  • Full gauge panel: air pressure engine temperature, engine oil pressure, ammeter and hourmeter

Filters

  • Air cleaners- two stage with restriction indicator

  • Fuel filter
  • Full-flow oil filter- engine & compressor

Electric System

  • 12 volt heavy duty maintenance free



Frame & Enclosure

  • Combination ball/pintle hitch

  • Lifting bail
  • Safety chains
  • Keyed lock on instrument panel door
  • Flexible fenders
  • Jackstand
  • Leaf spring suspension
  • Translucent fuel tank
  • Noise level below 76dBA at 7 meters
  • Lockable, double-walled fiberglass hood
  • Unitized body, 7 and 10 gauge steel
  • Powder coat finish

Discharge Valves

  • Two- 3/4" male NPT with hot and cold mixing valves

Safety System

  • ASME air receiver tank

  • Pressure relief valve
  • Shutdowns- low engine oil pressure, high coolant temperature
  • Antifreeze- 50/50 mixture

Warranty

  • Two years engine/compressor

Optional Features

  • Natural has & LPG conversions

  • Adjustable height hitch
  • Brakes
  • Hose reels
  • Line oiler
  • Excess flow cutoff valves
  • Retractable/adjustable third wheel
  • Stop, tail and turn indicators
  • Special paint
  • Tachometer
  • 200 psig intermittent capability
  • 150 psig quick test
  • 28 gal. fuel tank
  • Voltmeter
  • Extended warranty

Also Available

  • Compressed air and gas booster

  • CNG fueling equipment
  • Natural gas powered compressors
  • High pressure air and compressors
  • A full line of contractor air tools



Features that provide unbeatable performance and a competitive advantage include:

 MonoBlock Design
One bank of cylinders of the V-8 engine is used for power and the other for compression. Compressor and engine share a common air filter and oil filter
The PaceAir System
Economically matches the engine rpm to the air demand providing lower noise levels,, extended engine life and greater fuel economy. Pressure regulation is within +- 2% of the setting.


GRM125G-MS
$14,025.00 $10,478.22
"MINI SKID, Grimm-Schmidt Gas Air Compressors, Gasoline MonoBlock, reconditioned Ford V302 , ((Please Call 800-458-3687 Ext 801 For Freight Rate))"

GRM125G-POR
$13,650.00 $10,198.05
"PORTABLE, Grimm-Schmidt Gas Air Compressors, Gasoline MonoBlock, reconditioned Ford V302, ((Please Call 800-458-3687 Ext 801 For Freight Rate))"

GRM125G-URL
$13,545.00 $10,119.60
"UTILITY, Grimm-Schmidt Gas Air Compressors, Gasoline MonoBlock, reconditioned Ford V302, ((Please Call 800-458-3687 Ext 801 For Freight Rate))"

GRM150G-MS
$15,855.00 $11,845.43
"MINI SKID, Grimm-Schmidt Gas Air Compressors, Gasoline MonoBlock, Ford V351 ((Please Call 800-458-3687 Ext 801 For Freight Rate))"

GRM150G-POR
$14,490.00 $10,825.62
"PORTABLE, Grimm-Schmidt Gas Air Compressors, Gasoline MonoBlock, Ford V351 ((Please Call 800-458-3687 Ext 801 For Freight Rate))"

GRM150G-URL
$14,370.00 $10,735.97
"UTILITY, Grimm-Schmidt Gas Air Compressors, Gasoline MonoBlock, Ford V351 ((Please Call 800-458-3687 Ext 801 For Freight Rate))"

GRM175G-MS
$14,940.00 $11,161.82
"MINI SKID, Grimm-Schmidt Gas Air Compressors, Gasoline MonoBlock, Ford V352 ((Please Call 800-458-3687 Ext 801 For Freight Rate))"

GRM175G-POR
$15,555.00 $11,621.30
"PORTABLE, Grimm-Schmidt Gas Air Compressors, Gasoline MonoBlock, Ford V352 ((Please Call 800-458-3687 Ext 801 For Freight Rate))"

GRM175G-URL
$15,050.00 $11,244.01
"UTILITY, Grimm-Schmidt Gas Air Compressors, Gasoline MonoBlock, Ford V352 ((Please Call 800-458-3687 Ext 801 For Freight Rate))"
