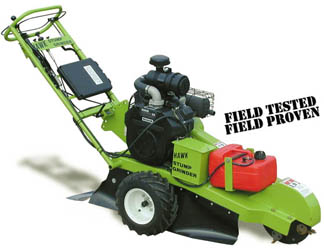

Hawk Self Propelled Stump Grinder at Southern Tool Catalog

The new HAWK Self-Propelled Stump Grinder is the ideal stump grinder for rental stores, tree care companies, landscapers, nurseries, golf courses and more. The self-propelled unit goes where you need it to go and delivers outstanding performance. The HAWK is capable of grinding any stump diameter from a height of 24" down to 16" below grade.

The HAWK is proven to deliver durability, simplicity, low maintenance and high performance.

Once you’ve seen the HAWK fly through a stump, we’re sure you’ll be convinced that it is the most outstanding stump grinder in its class.

Standard 20-horsepower Kohler or Honda engine is furnished with a heavy-duty industrial cartridge-type air filter to help extend engine life
Eight adjustable and individually-replaceable cutting teeth optimize the stump grinder's performance while minimizing maintenance
Completely enclosed belt guard meets OSHA regulations and protects clutch torque tab
Positive mechanical adjustment for hydrostatic drive belt tension simplifies maintenance
Positive locking free-wheel position eases machine transport
Return spring on disc brake ensures non-stick release
Operator's/Owner's Manual is located in a weatherproof compartment on the handle bar ensuring that it’s with the unit for operator review any time
The angled frame and extended rear frame position the operator away from the work and extend engine life
A Dual Operator Presence Control Bar is active whether operator uses upper or lower handlebar
An Emergency Stop Switch is mounted on control panel
The Positive Locking Disc Brake keeps the HAWK in place while the stump grinder is operating
Apron around chip confinement area minimizes chip discharge

Engine

20-HP Kohler or Honda with Electric Start
25-HP Kohler or Honda with Electric Start
Low oil pressure shutdown
Heavy duty industrial cartridge-type air filter

Drive Train

Hydrostatic drive and transaxle with disc brake
Fully-enclosed 14 ga. steel belt guard secured to frame
(not engine)
2V Grooved HI POWER belts, A section banded
Infinitely variable speed control
Positive mechanical drive belt adjustment
Positive locking free-wheel position

Cutter Wheel

14” diameter x 3/8” thick
1,575 RPM when engine is at 2,500 RPM
1-1/2” diameter cutter wheel shaft
1-3/16” self-aligning pillow block bearings
8 reversible pockets
8 individual carbide teeth with 1/2” square shank

Cutting Range

Any diameter, no limitations
24” above ground; 16” below ground

Options:

Green wheel for sharpening teeth

General

Width: 32”
Height to top of engine: 42”
Weight: 550 pounds (varies w/engine selection)
Frame: 7 gauge hot-rolled steel channel; all welds continuous
Handle Bar: heavy-duty 1-5/16” steel pipe; 7 position handle bar yields size range from 101” length and 39” height (lowest position) to 78” length and 61” height
(highest position)
Tires: 6.50 x 16” Super Lug Traction Mudder mounted on removable wheel with 4-bolt hub
Brakes: disc brakes, hand engaged with easy-to-reach lever on handle bar. Return spring ensures non-stick release
Gas Tank: 3-gallon marine style UL approved
Battery: Heavy duty 340 CCA battery in completely enclosed steel battery box
PTO: Electric PTO
Throttle: Positive locking veneer type throttle cable

Manual
Manual is located in a weatherproof Manual Pack mounted on the handle bar and attached with a steel tether. This ensures that the manual stays with the unit and the operator can review the operational instructions at any time. A second manual is included with each unit and is also available on CD-ROM.
Specifications subject to change without notice or obligation.
