Hawk Standard Model Stumpgrinder at Southern Tool Catalog

The HAWK was designed to offer an alternative to large, cumbersome, intimidating stump grinders. The HAWK successfully combines a comfortable size with the ability to tackle tough stump grinding jobs. The ergonomic positioning of the handle and the dual handlebars allow the HAWK’s operator to grind any stump diameter from a height of 24” to 16” below grade . . . all in a stump grinder that’s just 30-1/2” wide and weighs in at 320 pounds.
The feature-rich HAWK has also been designed with operator safety in mind. While good sense and caution are always essential, the HAWK offers several built-in safeguards to help ensure the safety of the operator. These features include:

Angled frame and extended rear frame position the operator away from the grinding area
Dual Operator Presence Control Bar is active whether operator uses upper or lower handlebar
Emergency Stop Switch mounted on control panel
Positive Locking Drum Brake keeps the HAWK in place while the stump grinder is operating.

Engine

13-HP Honda with Recoil Start & Cyclone Air Cleaner
20-HP Honda with Electric Start & Cyclone Air Cleaner
13-HP Kohler with Recoil Start
20-HP Kohler with Electric Start
Low oil pressure shutdown with splash lubrication
1.72-gallon fuel tank

General

30-1/2” wide
Height to top of engine: 34”
Weight: 320 pounds (varies w/engine selection)
Frame: 7 gauge hot-rolled steel channel
Handle Bar: heavy-duty 1-5/16” steel pipe
Tires: high speed 4.80-8”
Brakes: drum type brake on right wheel, hand engaged with easy-to-reach lever on handle bar

Specifications subject to change without notice or obligation.

Cutter Wheel

14” diameter x 3/8” thick
1,575 RPM when engine is at 2,500 RPM
1-1/2” diameter cutter wheel shaft
1-3/16” self-aligning pillow block bearings
3V grooved HI POWER banded belt
Fully-enclosed 14 ga. steel belt guard secured to frame (not engine)
8 reversible pockets
8 individual carbide teeth with 1/2” square shank

Cutting Range

Any diameter, no limitations; 24” above ground; 16” below ground

Options:

Quick-disconnect towing package with 2” ball
Green wheel for sharpening teeth

Height Position	Handle Bar Height	Length to End of Handle Bar
1 (lowest)	42-1/2”	98-3/4”
2nd	46-7/8”	96-1/2”
3rd	51-7/8”	93-3/4”
4th	54-3/4”	89-1/2”
5th	57-7/8”	85-1/4”
6th (highest)	60”	80-1/2”

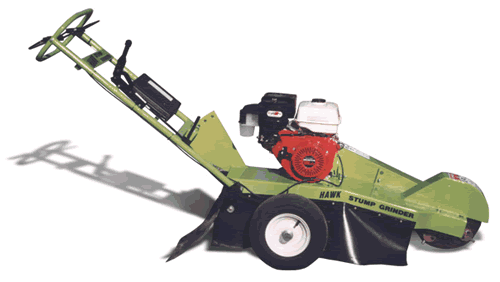

Optional Tow Hitch Package Shown here
