By
far the most portable band saw mill that can perform as well as
larger sawmills. This bandmill is so portable that most ATV 4
wheelers can tow them almost anywhere.
Oscar 18" comes standard with a 6.5 HP engine, cuts 18" diameter
logs, Hud-Son guides and has 2 six foot ground tracks. Also a
towable trailer is available for off road or deep woods milling.
This will totally out perform chain saw mills with the narrow kerf
cut. The Woodmiser DoubleHard thin kerf band mill blades save
lumber and you get a smoother finish.
Estimated Weight (lbs): complete unit: 435 lbs |
|

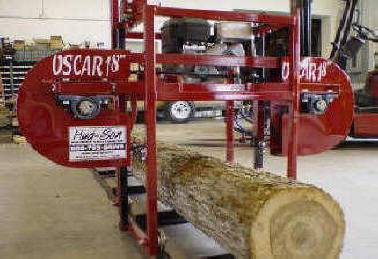

The Oscar 18"
Standard Features:
-
18" (Maximum)
Diameter Log Capability
-
2 - 6' Ground
Tracks (12' Total)
-
Manual Start 6.5 HP Overhead
Valve Engine
-
Hand Crank Height Adjustment
-
16" Diameter Band Wheels with
Pyrathane Belt
-
2 Log Dog Assemblies
-
Powder Coat Finish
-
Hud-Son Shoe Guides
-
Centrifugal Clutch
-
Standard DoubleHard
TM
Woodmizer Band Blade
-
Hud-Son double Support
Bandwheel System with 1
1/2"
Pillow Block Bearing Hud-Son Guides
-
Lube Tank
|
The Oscar 18"
Customized Options:
- Standard Oscar 18"
- Oscar 18" w/complete 12'
off-road trailer
Options:
- 6' Ground Track Extensions Bolt Together
- NEW Optional Log Dog
- Extra Log Dogs
- Replacement Bearings for Hud-Son Guides
- Lube Tank
- Bandmill Blades WM132
|
|
Wood-mizer doublehard
bandmill blades are now standard on all Hud-Son sawmills.
Woodmizer saw blades are available from
Hud-Son Forest Equipment, all Hud-Son Dealers and six Woodmiser
Location in the USA. |
|
Part # |
Specs |
Sawmill Applications |
| WM
132 |
11'
x.035x7/8 x 1 1/4 |
Oscar
18" small Bandmill |
| WM
156 |
13' x
.035x7/8 x 1 1/4 |
Oscar
28" Bandsaw |
| WM
160 |
13'4"x.035x7/8 x 1 1/4 |
Oscar
30" Sawmill |
| WM
167 |
13'11"x.042x7/8 x 1 1/4 |
Oscar
36", Farmboss 36" |
| WM
221 - 1.25 |
18'4"x.042x7/8 x 1 1/4 |
Oscar
52", Farmboss 52" |
Wood-miser
Doublehard blades can be ordered to fit any Norwood Sawmill,
Timber Harvester Bandmill, Baker Sawmill, Enercraft, Mighty
Mite, Quality, Turner, Timberking, Cook's, Kasco, J.C. Saws,
T.A.Schmid, TimberWolf, Log Master, Boardmaster, Clarke, Morgan,
Povlsen, Thomas, Cutting Edge, Meadows, Jonsered, Better Built
and many others. Also, Woodmizer offers a re-sharp program for
all manufactures of portable sawmills.
These blades will increase preformance. Call Woodmizer today! |
