Hud-Son Oscar 230 Sawmill at Southern Tool Catalog

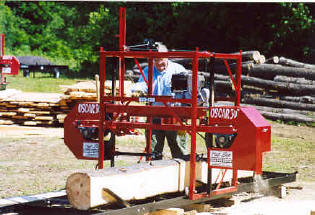

The Oscar 230" is stealing the portable sawmill market with its affordability and efficiency. This model is economically priced for any wood cutter and features a 10 HP Motor and two 7' ground tracks. This portable sawmill can accommodate a 30" diameter log and provide you with all of your lumber needs. Optional trailer packages are available for Oscar 230.

Sawmills, Portable Sawmills, bandmills, sawmilling equipment - Hud-Son
Hud-Son produces quality, affordable portable sawmills and wood processing equipment with plenty of informative facts on products, customer service and wood products to fill all of your forestry needs.

Our economical sawmill with large log capability has more options, lower cost, standard model is available with ground tracks or optional trailer system.

Multiple engine sizes to fit every need.
Estimated Weight (lbs): Head with no engine, no track: 465lbs, Head with 10hp engine: 525 lbs,
7' Ground track: 145 lbs, 20' one piece trailer: 840 lbs

The Oscar 230" Comes Standard With:

30" Capacity (Log Diameter)
2 - 7' Ground Tracks
10 HP Overhead Valve Engine
11/2" Tubular Steel Framing
Manual Start
Lubrication Tank
Manual Height Adjustment in 1/16" Increments
16" Band Wheels
Hud-Son Guides
Adjustable Log Dogging System
Bottom Board 1" Capability
Powder Coat Finish
Centrifugal Clutch
DoubleHard TM Woodmizer Saw Blades
Vibration Reducing Lathe cut Pyrathane Bandwheel Belting

The Oscar 230" Customized Options Include:

Complete Units:

10 HP Ground Track - Unit comes with all standard features
13 HP Ground Track - Unit comes with all standard features
16 HP Ground Track - Unit comes with all standard features
30" 10 HP 20' trailer unit (High Speed Axle Trailer)
30" 13 HP 20' trailer unit (High Speed Axle Trailer)
30" 16 HP 20' trailer unit (High Speed Axle Trailer)
Power Feed with adjustable speed control forward & reverse
(If equipped with Electric Start)
7' Ground Track Extension
Log Loading Ramps (2) (For use with Trailer Package)
Mudsaw/Debarker (extends blade life for dirty logs ) (Electric)
Replacement Bearings for Hud-Son Guides
Replacement Shoes for Hud-Son Guides (set of 2)
Light Kit (For use with Trailer Package)
RPM & Hour Meter
Extra Log Dog Assembly
Bandmill Blades WM160

Wood-mizer doublehard bandmill blades are now standard on all Hud-Son sawmills. Woodmizer saw blades are available from Hud-Son Forest Equipment, all Hud-Son Dealers and six Woodmiser Location in the USA.
Part #	Specs	Sawmill Applications
WM 132	11' x.035x7/8 x 1 1/4	Oscar 18" small Bandmill
WM 156	13' x .035x7/8 x 1 1/4	Oscar 28" Bandsaw
WM 160	13'4"x.035x7/8 x 1 1/4	Oscar 230" Sawmill
WM 167	13'11"x.042x7/8 x 1 1/4	Oscar 36", Farmboss 36"
WM 221 - 1.25	18'4"x.042x7/8 x 1 1/4	Oscar 52", Farmboss 52"
Wood-miser Doublehard blades can be ordered to fit any Norwood Sawmill, Timber Harvester Bandmill, Baker Sawmill, Enercraft, Mighty Mite, Quality, Turner, Timberking, Cook's, Kasco, J.C. Saws, T.A.Schmid, TimberWolf, Log Master, Boardmaster, Clarke, Morgan, Povlsen, Thomas, Cutting Edge, Meadows, Jonsered, Better Built and many others. Also, Woodmizer offers a re-sharp program for all manufactures of portable sawmills. These blades will increase preformance. Call Woodmizer today!
