The
clutch control rope runs through a swivel on top of the
winch. The winch can therefore be operated from any
direction. This is an important feature for the operator
as he can control the winch from a place where he can see
the load as he is pulling it in. Good vision will enable
the operator to prevent loads from hooking up behind stumps
and roots and also to reduce damage on the remaining trees.
This feature also enhances operator safety and production.
Without leaving the tractor seat, one can release the load,
drive out of adverse conditions and winch the load in
again. When winching from the tractor seat, one must have
the optional protective screen installed between the winch
and the operator. The clutch enables the operator to
select any pull from zero to maximum pull of the winch. The
clutch will slip when the load is heavier than the selected
pull. This prevents damage to the cable or winch even if
the load gets hooked behind a stump or root.
Both the clutch and the drum lock are rope controlled. The
operator can stand safely to the side, away from the cable
and the logs.
The clutch pads are over 3/8" thick and riveted with 12
rivets. The clutch is warranted for 5
years in everyday use. A new clutch can be riveted
on the old sprocket so the clutch is easy and inexpensive to
replace. The sturdy upper sprocket acts as a heat sink and
absorbs the heat generated in the clutch when winching, so
the clutch will not burn out.

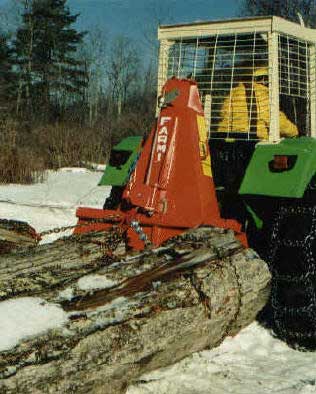

Four logs can be winched in and skidded out hooked to the
cable. An additional eight logs can be hooked up and
skidded out from the notches on the winch frame.
The large, heavy-duty drum can house up to 265 feet of 3/8"
cable. This exceptional reach enables the JL 501 to be used
also in very difficult terrain.
The cable coils better due to the improved design of the
winch drum. Even coiling is further improved by the sensor
roller which senses if the cable is moving in or out. If,
for example, the cable is pulled out, the sensor releases
the drum brake and it is very easy to pull the cable. When
the cable has been pulled out, the sensor notes that the
cable motion has stopped and engages the drum brake. That
stops the drum from turning and prevents backlash and tangle
of the cable on the drum.
The winch frame is 65" high. The high point of pull is very
beneficial as it creates down-pressure on the winch when
winching. The down-pressure pushes the blade into the
ground which anchors the winch and tractor in place. The
frame is also "thin" so the winch is close to the tractor.
Large net loads can therefore be skidded out as the weight
is close to the tractor. ROPS cab, and front end weights
or front end loader is a must.
An unique Farmi feature is the adjustable snatchblock
on the JL 501 model. The lower snachblock can be adjustable
up or down on a rail so optimal traction can be transferred
to the rear wheels on different size tractors. |
