Hud-Son Log Grapples & Rotators


Log Grapples & Rotators

Weldox 700 is a prime steel used in the manufacture of high quality log grapples. All grapples have a bronze bushing at every joint, and every joint has a grease fitting. Large, powerful cylinders. Double connection rods provide good balance and less stress. A belly plate protects the cylinder from underneath. Modern bypass grapple design. The  bypass grapples have excellent geometry. The form of the claws enables a smooth roll in of the stems. The grapples also close to a tight minimum opening.

  •  All grapples have a bronze bushing at every joint, and every joint has a grease fitting.

  • Large, powerful cylinders.

  • Double connection rods provide good balance and less stress.

  • A belly plate protects the cylinder from underneath.

  • Modern bypass grapple design.

  • The  bypass grapples have excellent geometry. The form of the claws enables a smooth roll in of the stems. The grapples also close to a tight minimum opening.

Grapple Model GR36 GR50 GR50HD GR55HD GR60 GR60HD GR75HD GR100
Max. gripping width 35 3/4" 50 3/4" 50 3/4" 55 1/2" 60 ½" 60 ½" 74 3/4" 98 7/8"
Min. opening 1 ½" 3 ½" 3 1/2" 2 3/8" 3 ½" 3½" 5 ½" 5 7/8"
Max. lifting capacity 2200 lb. 3960 lb. 3960 lb. 5500 lb. 6600 lb. 6600 lb. 11000 lbs. 15400 lb.
Height. open 33 5/8" 26 3/8" 26 3/8" 35 1/2" 38 3/8" 38 3/8" 34 ¼"
Height. closed 17" 19 1/2" 20" 20 ½" 21" 23" 25 ½" 31 1/8"
Width of wider claw 10" 11" 11.5" 14.5" 15 " 17.5" 18 3/4" 22 5/32"
Working pressure 2900 psi 2900 psi 2900 psi 2900 psi 2900 psi 2900 psi 2600 psi 3660 psi
Jaw material Raex 640 Weldox 700 Weldox 700 Weldox 700 Weldox 700 Weldox 700 Weldox 700 Weldox 700
Weight 110 lb. 209 lb. 231 lb. 275 lbs. 410 lb. 540 lb. 830 lb. 960 lb.
Recommended Rotator: R 30 R 45 R 45 R 6F R 12 R 12 R 12 R 12


Rotator Model R30 R45 R6 R12
Rotation: Unlimited in either direction
Max. load 6600 lb. 9900 lb. 13000 lb. 30800 lb.
Max working pressure 3000 psi 3000 psi 3600 psi 4640 psi
Torque 516 ft. lb./2320 psi 737 ft. lb./2320 psi 1180 ft. lb/2900 psi 1900 ft. lb/2900 psi
Weight: 36 lb. 46 lb. 95 lb. 174 lb.
Has pin to fit grapple hanger with hole of: 1" 1" 1 3/8" 2 1/16"


Valby Skid Steer Grapples
Model: SSGR 50 SSGR 55 SSGR 60
Max. Gripping Width 50 3/4" 55 1/2" 60 1/2"
Min. Opening 3 1/2" 2 3/8" 3 1/2"
Max. Lifting Capacity 3960 lb. 5500 lb. 6600 lb.
Width of Wider Claw 11" 16 3/8" 15"
Working Pressure 2900 psi
Jaw Material Weldox 700
Rotation Unlimited in either direction
Rotator Torque 737 ft. lb./ 2320 psi
Reach from Mounting Plate 51"
Weight 520 lb. 695 lb. 820 lb.

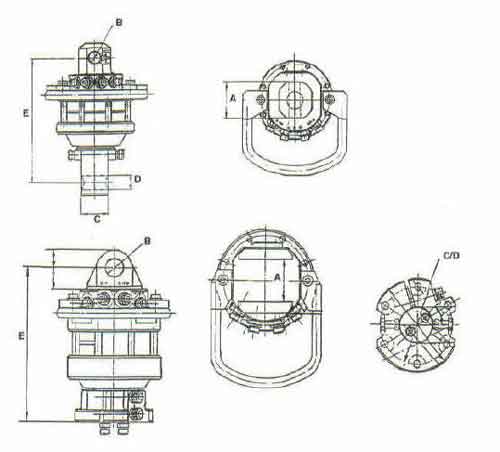

Hook up dimensions ( in millimeters)
Type A B C D E Thread
R 30 60 25 49.5 25 238 G 3/8"
R 45 73 25 59 30 254 G 3/8"
R 104 80.5 35 0 173/6 0 173/6 289 G 1/2"





HUDGR36
$1,050.00 $1,132.95
GR 36 Grapples >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDGR50
$1,785.00 $1,926.02
GR 50 Grapples >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDGR50HD
$2,200.00
GR 50 HD Grapple -----> Call 800-458-3687 For Our Inhouse Special and Freight Rate On This Item!


HUDGR55HD
$2,800.00
GR 55 HD Grapple -----> Call 800-458-3687 For Our Inhouse Special and Freight Rate On This Item!


HUDGR60
$3,465.00 $3,738.74
GR 60 Grapples >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDGR60HD
$4,000.00
GR 60 HD Grapple -----> Call 800-458-3687 For Our Inhouse Special and Freight Rate On This Item!


HUDGR75
$5,250.00 $5,664.75
GR 75 Grapples >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDGR100
$9,345.00 $10,083.26
GR 100 Grapples >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDR6
$1,945.00 $1,769.95
R6 Rotators >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDR45
$1,000.00 $910.00
R45 Rotators >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDR30
$790.00 $718.90
R30 Rotators >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDR12
$2,835.00 $2,579.85
R12 Rotators >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDSSGR50
$5,515.00 $5,018.65
SSGR50 Skid Steer Grapples >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDSSGR55
$6,595.00 $6,001.45
SSGR55 Skid Steer Grapples >>>>> Call 1-800-458-3687 For A Freight Rate!


HUDSSGR60
$7,280.00 $6,624.80
SSGR60 Skid Steer Grapples >>>>> Call 1-800-458-3687 For A Freight Rate!
