Shop Cranes

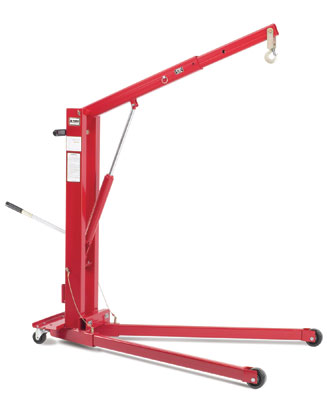

The Jet JHC-200X, 2 Ton, Fixed Legs, Quick-Lift Pump
has a 2 Year warranty
- Heavy-duty steel frame construction
- Quick-lift hydraulic ram Feature two pump pistons - lifts with both up and down stroke
- Chrome plated plunger and ram pistons provide superior rust resistance
- Top-of-stroke and safety overload bypass system protects hydraulic ram assembly
- Oversized hitch pin for quick and easy boom adjustment
- Steering handles enable improved maneuverability
- Rugged steel fixed and swivel casters
- JFHC-200X model Feature folding legs with safety pins for compact storage
- Complies with ANSI/ASME PALD-12 standards
| Detailed Specifications | |
|---|---|
| Part Number | 106200 |
| Base Length (Max) | 94 1/2 inch |
| Base Length (Min) | 63 1/4 inch |
| Base Width (Max) | 37 inch |
| Base Width (Min) | 31 inch |
| Boom Height (Max) | 92 1/2 inch |
| Boom Height (Min) | 3 inch |
| Boom Length | 81 inch |
| Boom Position | 1 |
| Boom Reach | 60 1/2 inch |
| Brand | Jet |
| Capacity | 1,100 Lbs |
| Caster size | 3 1/2 inch |
| Chain Size (W x L) | 3/8 x 12 inch |
| Height | 7 inch |
| Leg Height | 7 3/4 inch |
| Length | 59 inch |
| Length Inside Legs (Max) | 76 inch |
| Length Inside Legs (Min) | 44 3/4 inch |
| Model Number | JHC-200X |
| Net Weight | 254 pound |
| Overall Height | 56 3/8 inch |
| Width | 31.5 inch |

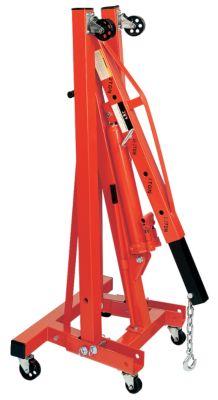

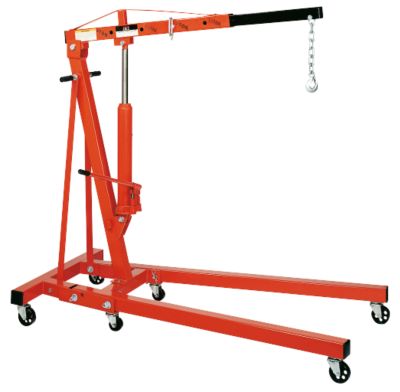

The Jet JFHC-200X, 2 Ton, Folding Legs, Quick-Lift Pump
has a 2 Year warranty
has a 2 Year warranty
- Heavy-duty steel frame construction
- Quick-lift hydraulic ram Feature two pump pistons - lifts with both up and down stroke
- Chrome plated plunger and ram pistons provide superior rust resistance
- Top-of-stroke and safety overload bypass system protects hydraulic ram assembly
- Oversized hitch pin for quick and easy boom adjustment
- Steering handles enable improved maneuverability
- Rugged steel fixed and swivel casters
- Complies with ANSI/ASME PALD-12 standards
| Detailed Specifications | |
|---|---|
| Part Number | 106203K |
| Base Length (Max) | 68 1/2 inch |
| Base Length (Min) | 21 1/2 inch |
| Base Width (Max) | 38 inch |
| Base Width (Min) | 32 inch |
| Boom Height (Max) | 105 1/4 inch |
| Boom Height (Min) | 3 5/8 inch |
| Boom Length | 63 1/8 inch |
| Boom Position | 1 |
| Boom Reach | 47 7/8 inch |
| Brand | Jet |
| Capacity | 1,100 Lbs |
| Caster size | 3 1/2 inch |
| Chain Size (W x L) | 3/8 x 12 inch |
| Height | 8 inch |
| Leg Height | 7 3/4 inch |
| Length | 64 inch |
| Length Inside Legs (Max) | 51 inch |
| Length Inside Legs (Min) | 51 inch |
| Model Number | JFHC-200X |
| Net Weight | 235 pound |
| Overall Height | 58 inch |
| Width | 23 inch |
NEW TAB
|
WARRANTY AND SERVICE WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848. |
There are no listed accessories.
|
