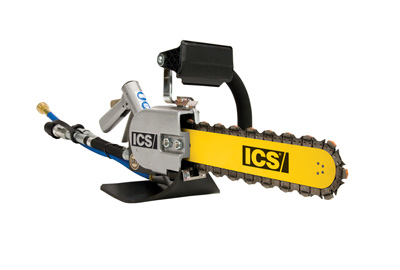

ICS 814PRO Concrete Saw

814PRO PRK™
Big Performance in a Small Package

It may be small, but with as much power as its big brother the 853PRO, the 814PRO is ready for the big jobs. Lighter than other hydraulic saws with the ability to cut perfectly square openings as small as 3 ˝ inches (9 cm), the 814PRO is a natural for utility work and other applications where a mix of portability and power are required.


For More Information And Technical Tips
Click Here
814PRO PRK SPECIFICATIONS
WEIGHT 15 lbs (6.8 kg) with 13-inch (32 cm) bar and chain
BAR LENGTH 13 inches (32 cm)
OPERATING SPEED 8900 rpm
CHAIN SPEED 4400 fpm (25 m/s), free running
POWERHEAD DIMENSIONS 14.3 inches (36.3 cm) length
11.3 inches (28.7 cm) height
9.2 inches (23.4 cm) width
TORQUE 95 in-lbs
HORSEPOWER 11 hp
HYDRAULIC SUPPLY 8 gpm (30 lpm), 2500 psi (172.5 bar)
NOISE LEVEL 88 dB @ 3 ft (1 m)
VIBRATION LEVEL 3.5 meters/second2 (front handle)
WATER SUPPLY Minimum 20 psi (1.5 bar)

Datasheet Catalog

Download Free
Length
(Inches)
Bars ICS Guidebar Chains ICS Diamond Chain
Saw

814PRO
13
74042  Guidebar
74719  TwinPRO-25
13

(fits 25 Segment Diamond Chains)

74713  PremiumPRO-25
13 (fits 25 Segment Diamond Chains)
70717  AbrasivePRO-25
13 (fits 25 Segment Diamond Chains)
74700  SoftPRO-25
13 (fits 25 Segment Diamond Chains)
70724  CornerPRO-25

ICS Frequently Asked Questions


ICS71675
$2,695.00 $2,291.00
"814PRO Hydraulic Pkg w/ PRK bar, TwinPRO) ((25% OFF ICS74719 - 13"" Diamond Chain - Retail Value - $550.00 - With Saw Purchase)) ==>> FREE GROUND UPS To any Location withn the Lower 48 States (PC012009)"

ICS509860
$5,995.00 $5,096.00
"P95 Powerpack ==>> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included. (PC-012009)"""

ICS70350
$695.00 $521.25
FLOW ADAPTER VALVE (8 GPM) ==>> SEE UPS Chart at Check Out for Freight OR Add to a Saw Order for FREE Freight (PC032309)

ICS70466
$295.00 $221.25
25' HYDRAULIC HOSE SET ==>> SEE UPS Chart at Check Out for Freight OR Add to a Saw Order for FREE Freight (PC032309)

ICS525741
$160.00 $144.00
"13"" Guidebar (fits 814 PRO) ::::: See UPS Chart for Freight or add to a ICS Saw for Free Freight!"

ICS74719
$550.00 $467.50
Diamond Chain TwinPRO-25 Diamond Chain TwinPRO-25 ==>> FREE GROUND UPS On This Chain (Call 800-458-3687 for Any Other Specials (PC12009)

ICS74713
$670.00 $569.50
Diamond Chain PremiumPRO-25 Diamond Chain PremiumPRO-25 ==>> FREE GROUND UPS On This Chain (Call 800-458-3687 for Any Other Specials (PC12009)

ICS74700
$395.00 $335.75
Diamond Chain SoftPRO-25 Diamond Chain SoftPRO-25 ==>> FREE GROUND UPS On This Chain (Call 800-458-3687 for Any Other Specials (PC12009)
