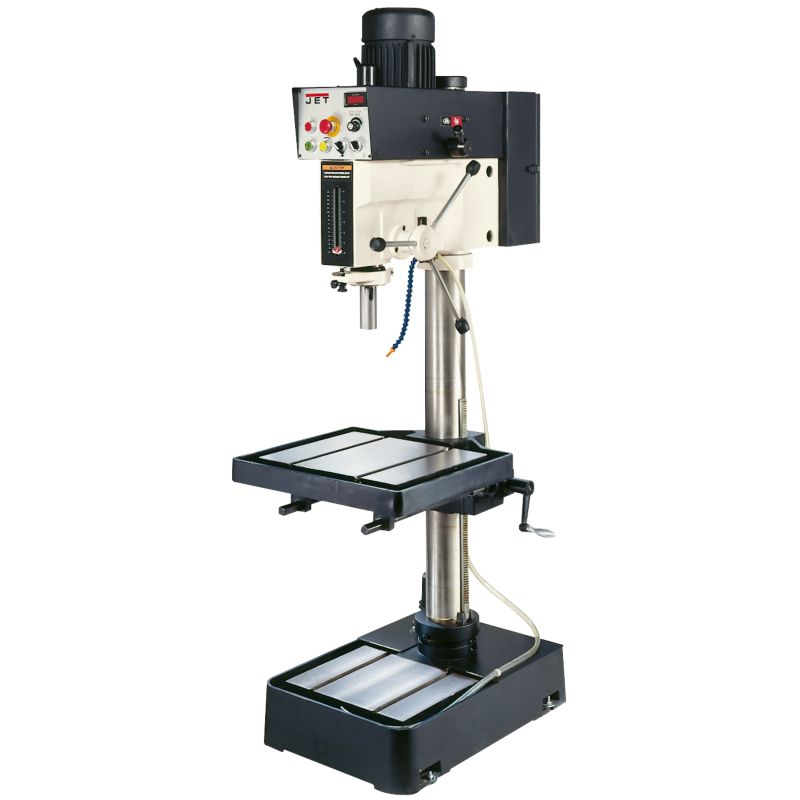

JET JDP-20EVS-230, 2HP, 3Ph, 230V Only
JET JDP-20EVS-460, 2HP, 3Ph, 460V Only
JDP-20EVS-230, 1-1/2" Drilling Capacity, 2HP, 3Ph, 230V Only
- 20" ELECTRONIC VARIABLE SPEED DRILL PRESSES
- Runs quieter and smoother than a conventional variable speed head
- 230V model can run on single phase power
- Low maintenance head has less moving parts
- Incorporates a high-low gear box to maintain low speed torque
- Chrome molybdenum gears are hardened, ground, and shaved
- Quiet running and longer life
- Speed can be adjusted in each range during operation
- LED spindle RPM readout is conveniently mounted
- Tapping mode allows instantaneous spindle reversal
- Easy to read internal depth gauge
- Extra large emergency stop button adds to safe operation
- Table can be raised from the front or side
- Large production table and T-slotted dish-in base
- Integrated tapping and reversing controls
- Complete coolant system
- T-slotted work table
JDP-20EVS-460, 1-1/2" Drilling Capacity, 2HP, 3Ph, 460V Only
- 20" ELECTRONIC VARIABLE SPEED DRILL PRESSES
- Runs quieter and smoother than a conventional variable speed head
- Low maintenance head has less moving parts
- Incorporates a high-low gear box to maintain low speed torque
- Chrome molybdenum gears are hardened, ground, and shaved
- Quiet running and longer life
- Speed can be adjusted in each range during operation
- LED spindle RPM readout is conveniently mounted
- Tapping mode allows instantaneous spindle reversal
- Easy to read internal depth gauge
- Extra large emergency stop button adds to safe operation
- Table can be raised from the front or side
- Large production table and T-slotted dish-in base
- Integrated tapping and reversing controls
- Complete coolant system
- T-slotted work table
| Part Number | 354210 / 354212 |
| Motor | 2HP, 3Ph, 230V Only |
| Motor | 2HP, 3Ph, 460V Only |
| Number of Spindle speeds | Variable |
| Range of Spindle Speeds (RPM) | 65-2000 |
| Spindle Taper | MT-3 |
| Max Distance Spindle to Table ( in.) | 30-1/4 |
| T-Slots Number and Size (in.) | 2 x 5/8 |
| T-Slot Centers (in.) | 7-7/16 |
| Work Table Weight Capacity (lbs.) | 230 |
| Column Diameter (in.) | 4-1/2 |
| Drilling Capacity Cast Iron (in.) | 1-1/2 |
| Drilling Capacity Mild Steel (in.) | 1-3/8 |
| Tapping Capacity Mild Steel (in.) | 3/4 |
| Quill Travel (in.) | 6 |
| Distance Base to Spindle (in.) | 43-5/16 |
| Table Size (in.) | 22 x 18-3/4 |
| Drills to Center of Circle (in) | 20 |
| Swing (in.) | 10-7/16 |
| Base Work Table (in.) | 14-3/4 x 11-13/16 |
| Table Travel (in.) | 18 |
| Spindle Travel (in.) | 6 |
| Model Number | JDP-20EVS/230 & JDP-20EVS/460 |
| Brand | Jet |
| Overall Dimensions | 37 x 37 x 82-1/4 |
| Height | 73 inch |
| Width | 39 inch |
| Length | 25 inch |
| Net Weight | 722 pound |
|
WARRANTY AND SERVICE WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848. |
|
|
