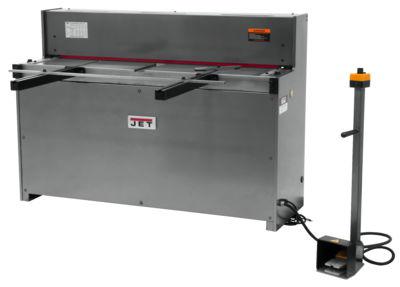

Jet HS1452-1T, 52" x 14 Gauge Hydraulic

hydraulic shearjet 2 year warranty logo





HS1452-1T, 52 inch x 14 Gauge Hydraulic Shear 2 Year warranty

  • Available in both 1 phase and 3 phase
  • Heavy-duty steel construction eliminates deflection across the blade span
  • Hand-wheel controlled back gauge for quick and easy depth adjustments
  • Easy to use satellite foot controls with emergency stop button
  • Precise bed and beam accuracy assures working accuracy
  • Low cutting angle to cut narrow strips without twisting
  • 14 gauge maximum capacity for mild-steel
  • 10 - 12 gauge maximum capacity for soft alloys
Detailed Specifications
Part Number - 1 Phase Unit - HS1452-1T / 3HP / 220V / 1 Phase 756205
Part Numner - 3 Phase Unit - HS1452-3T / 3HP / 220V / 3 Phase 756206
Style (Type) Hydraulic
Max. Soft. Alloy Capacity (Gauge) 10 - 12
Mild Steel Capacity (Gauge) 14
Shearing Length Capacity (In.) 52
Back Gauge Capacity (In.) 25-1/2
Front Gauge Capacity (In.) 23-1/2
Strokes Per Minute (Full Length) 20
Overall Dimensions (L x W x H) (In.) 62 x 77 x 42
Weight (Lbs.) 1,335
Height 46.0000
Length 69.0000
Weight 1880.0000
Width 30.0000



jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



JT9-756205
HS1452-1T, 52 X 14 GAUGE HYDRAULIC SHEAR 1 PH, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT-DOCK & WEIGHT = 1880 LBS
CALL 800-458-3687 X1 OR ADD TO CART FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: JT9-756205
WMH756205
lease to own for as little as:$218 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$11,479.00

3
JT9-756206
HS1452-3T, 52 X 14 GAUGE HYDRAULIC SHEAR 3 PH, MADE IN CHINA, SHIPS VIA LTL TRUCK FREIGHT-DOCK & WEIGHT = 1880 LBS
CALL 800-458-3687 X1 OR ADD TO CART FOR OUR EXCLUSIVE BROTHER-IN-LAW DEAL ON THIS JET ITEM, DOING BUSINESS SINCE 1926!
Mfg. item #: JT9-756206
WMH756206
lease to own for as little as:$218 per month!
FREE expedited shipping Plus FREE residential, liftgate and call ahead service. 4
$11,479.00

3
