Introducing our new family of large resawing bandsaws!

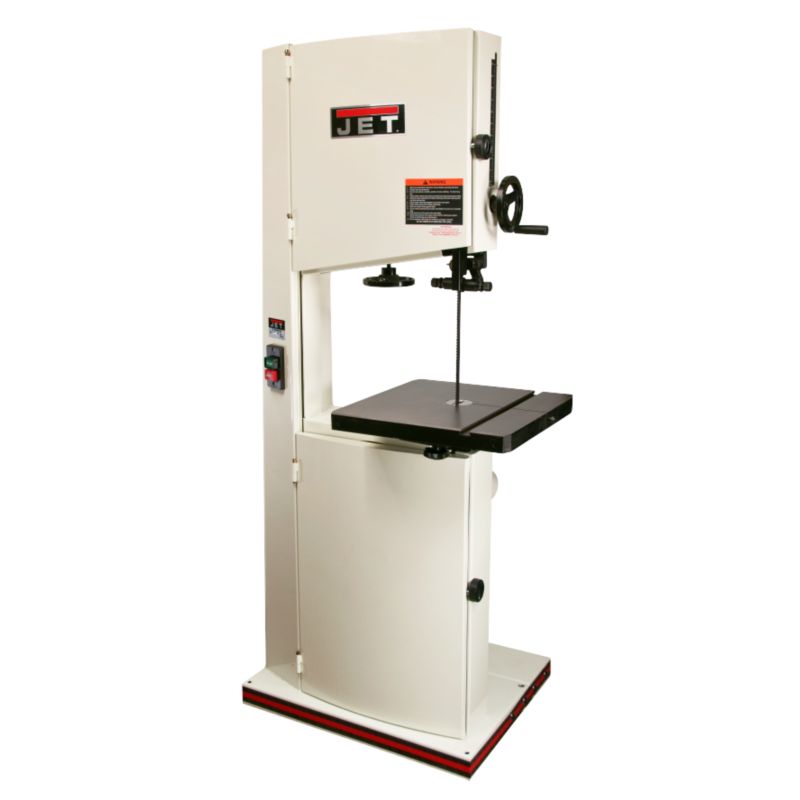

JWBS-16

Our 16" bandsaws are destined to become the industry standard because of their superior design, performance and features.

We have taken our Editors' Choice 18" bandsaw and built a whole new line of resawing bandsaws. Our exclusive double tapered column, rack-and-pinion blade guide height adjustment, and superior dust pickup port are just a few of the many great features these bandsaws have.

You can check out all these great features and more at your local JET dealer. You'll be glad you did!

All Three Units Offer These Great Features:

Dual tapered column design for greater ridigity and strength
Precision computer balanced wheels
Wide blade capacity for resawing large stock
Large cutting capacity
Superior dust collection pickup
Rack-and-pinion blade guide height adjustment
Dual locking doors
Powder coated paint
High quality bandsaw blades

Limited Lifetime Warranty

Additional Documentation

Woodworking Catalog Page

Adobe Acrobat Required to read these files.

Specifications
Model:JWBS-16	Part No. 708749B
Cutting Capacity (H/in)	10
Cutting Capacity (W/in)	16-3/8
Minimum Saw Blade (W/in)	1/8
Maximum Saw Blade (W/in)	1-1/4
Saw Blade (L/in)	123
Table Size (in)	17 x 17
Table Tilt (R x L)	45° x 10°
Table Height From Floor (in)	37-1/2
Wheel Diameter (in)	16-5/8
Blade Speed (SFPM)	3,000
Dust Chute Diameter (OD/in)	4
Motor	1-1/2HP, 1 Ph, 115/230V, Prewired 115V
Net Weight (lbs)	310
Rip Fence	Accessory
Bearing Guides	Accessory
Dual Tapered Support Column	Standard
Cast Iron Feed	Standard
Mitre Gauge	Accessory

Choose The Right Blade For Your Jet Bandsaw
STOCK NUMBER	BANDSAW SIZE (IN.)	BLADE LENGTH (IN.)	BLADE WIDTH (IN.)	PITCH (TPI)	TOOTH STYLE	BLADE THICKNESS
Band Plus - Hardened tooth points and tempered flex-back, ground and milled teeth and band back, larger gullet capacity for a longer life
709277	16	123	1/8	14	Raker	0.025
709278	16	123	3/16	4	Skip	0.025
709279	16	123	1/4	6	Hook	0.025
709280	16	123	1/4	14	Raker	0.025
709281	16	123	3/8	4	Hook	0.025
709282	16	123	3/8	14	Raker	0.025
709283	16	123	1/2	3	Hook	0.025
709284	16	123	1/2	6	Hook	0.025
709285	16	123	3/4	3	Hook	0.025
709286	16	123	3/4	10	Raker	0.032
709287	16	123	1	6	Hook	0.032
709288	16	123	1	6	Hook	0.032
Silicon Steel - Higher content of silicon, narrow kerf and flex-back, full tooth is flame hardened and produces less friction for extended life
709594	16	105	3/16	10	Raker	0.025
709595	16	105	3/8	6	Hook	0.025
709596	16	105	3/8	10	Raker	0.025
709597	16	105	3/8	14	Raker	0.025
709598	16	105	1/2	4	Hook	0.025
709599	16	105	1/2	6	Hook	0.025
709517	16	105	3/4	3	Hook	0.032
709606	16	123	3/16	10	Raker	0.025
709607	16	123	3/8	6	Hook	0.025
709608	16	123	3/8	10	Raker	0.025
709609	16	123	3/8	14	Raker	0.025
709610	16	123	1/2	4	Hook	0.025
709611	16	123	1/2	6	Hook	0.025
709612	16	123	3/4	3	Hook	0.032
709613	16	123	3/4	10	Raker	0.032
