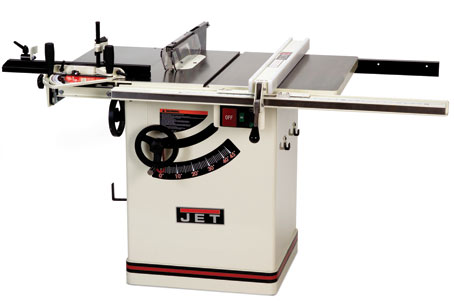

JET Closed Stand Super Saw





CLOSED STAND SUPERSAW

Features

  • XACTA® Fence II system with T-square design and HDPE sideboards
  • Sliding table for accurate cross-cutting and miter cuts
  • Enclosed cabinet channels dust to a 4" port for fast, clean dust collection
  • Pivot-lock miter gauge with angle guide quickly setup with 45° and 90° stops and lock material with cam-lock clamp (standard with sliding table)
  • Poly-V belt drive system Reduces vibration and heat build up resulting in better power transfer
  • Left tilting for more controlled beveled cutting
  • Cast iron wings for longer work surface and support area
  • Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
  • Moveable power switch with reset and power light lets you "customize" the position of your on/off switch for convenience, safety
  • Large heavy-duty handwheels helps you make precise adjustments with less effort
  • Powder coated paint for a long-lasting, chip-resistant finish

Optional Accessories

  • JST-SS Sliding Table-708771
  • ET-10TA-RT 27"X36"TABLE W/XACTA-LIFT KIT-708324K
  • ET-10T-RT 27"X16" TABLE W/XACTA-LIFT-708306K



Additional Documentation
Woodworking Catalog Page
Adobe Acrobat Required to read these files.


Specifications

Model Number

JWSS-10CSPF-S

Table Type

SLIDING

Right Rip Capacity (in.)

30

Motor (TEFC)

1-3/4HP, 1Ph, 115V

Miter Gauge Type

Pivot-lock

Blade Diameter (in.)

10

Arbor Diameter (in.)

5/8

Maximum Depth of Cut (in.)

3-1/3

Maximum Cut Depth at 45º (in.)

2-1/8

Table in Front of Blade at Maximum Cut (in.)

11-1/2

Maximum Cross Cut (in.)

28-1/2

Blade to Front of Table (in.)

11-1/2

Maximum Width of Dado (in.)

13/16

Maximum Dado Diameter (in.) requires zero clearance insert

8

Table Height (in.)

35-1/4

Table Size without Wings (L x W/in.)

21-1/4 x 27

Overall Dimensions (W x D x H/in.)

60 x 40 x 40

Arbor Speed (RPM)

4,000 RPM

Dust Port (in.)

4

Distance Between Sliding Table and Blade (in.)

4

Net Weight (lbs.)

460




wmh/708780K_main-th.jpg WMH708780K
$1,593.00 $1,406.62
"JWSS-10CSPF,1-3/4HP SS with 30"" XACTA Fence (WEIGHT = 460 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"

wmh/708781K_main-th.jpg WMH708781K
$1,740.00 $1,528.00
"JWSS-10CSPF-S:CS SS, 30"" Fence, Sliding Table (WEIGHT = 505 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"

WMH708782K
$1,668.00 $1,438.75
"JWSS-10CSPFX,1-3/4HP CS SS with 52"" X-Fence (WEIGHT = 475 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"

WMH708783K
$1,819.00 $1,592.26
"JWSS-10CSPFX-S:CS SS/52"" X-Fence / Sliding Table (WEIGHT = 520 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"

WMH708771
$466.87 $397.00
"JST-SS, Sliding Table ===>> FREE TRUCK SHIPPING On this Item to any Commercial Address. **NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED!"

WMH708306K
$436.08 $396.44
ET-10TA-RT 27"X36"TABLE W/XACTA-LIFT KIT ====>FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!

WMH708324K
$461.15 $414.22
ET-10T-RT 27"X16" TABLE W/XACTA-LIFT ====> FREE FREIGHT On This Order Anywhere within the Continental US, Note: Any Tailgate/Residential Charges NOT INCLUDED!

708119_sm.jpg WMH708119
$148.00 $123.36
JMB-UMB-HD Universal Mobile Base (WEIGHT = 30 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order.

WMH708791
$56.00 $49.00
"NCI-10SS, No Clearance for SuperSaw (WEIGHT = 1.1 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

709207_sm.jpg WMH709207
$37.04 $31.50
"13"" Roller Stand (WEIGHT = 13 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

WMH708772
$192.00 $168.00
"JWSS-CW, Cast Wing and Miter Gauge (WEIGHT = 37 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "


WMH708775
$172.00 $150.50
"JWSS-36T, 27"" x 36"" Extension Table (WEIGHT = 31 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

WMH708776
$200.00 $166.70
"SS-10TAR, 27"" x 36"" Table with Cutout for SS (WEIGHT = 28 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

WMH708776TK
$365.84 $311.09
"SS-10TAR, 27"" x 16"" Table & X-Lift for SS >>>>> FREE Ground UPS anywhere in the lower 48 States."

WMH708777
$135.10 $114.88
"SS-10, 27"" X 16"" Table for SS >>>>> FREE Ground UPS anywhere in the lower 48 States."

WMH708778
$176.00 $154.00
"SS-10TR, 27"" x 36"" Table with Cutout for SS (WEIGHT = 13 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

WMH708778TK
$376.22 $319.91
"SS-10TAR, 27"" x 36"" Table & X-Lift for SS >>>>> FREE Ground UPS anywhere in the lower 48 States."


WMH708782Z
$196.00 $171.50
"SSX-52R, 52"" XACTA Rail Set for SS (WEIGHT = 48 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "


WMH708783Z
$184.00 $161.00
"SSX-30R, 30"" XACTA Rail Set for SS (WEIGHT = 35 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

wmh/Tenoning-Jig-sm.jpg WMH708295
$156.00 $136.50
"JTG-10Q, Tenoning Jig with Quick Release (WEIGHT = 26 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "


WMH708295SS
$41.16 $35.00
"JTG-SSAP, SuperSaw Adaptor Plate (WEIGHT = 5.4 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "


WMH708295SSK
$176.00 $154.00
"JTG-SSK, SuperSaw Tenoning Jig Kit (WEIGHT = 15 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

wmh/708158_mbl-bse_sm.jpg WMH708158
$96.00 $80.02
Mobile Base Extension Kit for 708119 (WEIGHT = 17 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order.
