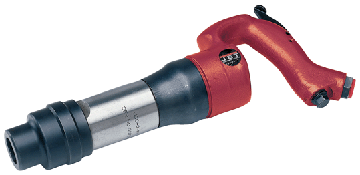

CASTLE TOOTH HANDLE CHIPPING HAMMERS
-
Available
with four different stroke lengths, 1"-
4"
-
Ring
valve type
-
Drop-forged
castle tooth style handle
-
Heavy-duty
hammer provides hard hitting powerful blows
-
Outside
trigger and open handle design
-
Available
with round or hex bushing
-
Will
accommodate standard oval collar chisel and
retainers
-
Comes
with standard type retainer
-
JCO-3R-RJST
same features as but with a saw tooth handle
|
FOUR-BOLT CHIPPING HAMMERS
-
Available
with four different stroke lengths, 1"
- 4"
-
Four-bolt
handle design reduces
-
handle
breakage
-
Rubber
coated trigger
D-handle for extra strength and better grip
-
Exhaust
deflector diverts exhaust while providing a
comfortable grip
-
Heavy-duty
hammers provide hard hitting powerful blows
-
Available
with round or hex bushings
-
Will
accommodate standard oval collar chisel and
retainers
-
Comes
with standard type retainer
-
Recommended
air pressure 90 PSI
|
|
OPTIONAL ACCESSORIES |
|
for JET JCO & FBCH chipping hammers include:
|
| Quick change retainer (557909) |
| Ball type retainer (557910) |
| Standard retainer (557911) |
| 7/8" - 24 hose swivel
(557913) |
| Retainer springs, 25 pieces
(557912) |
|
SPECIFICATIONS |
| Stock No |
Model No |
Shank
Bushing
Style |
Shank
Bushing
Size |
Stroke
Length |
Bore
Size |
Blows per Minute |
Ft/lbs per
Blows
@90psi |
Air Consump.
(cfm) |
Air Inlet
(NPT/in) |
AirHose
(ID/in) |
Overall Length
(in) |
Net Weight
(lbs) |
| 557901 |
JCO-1R-RV |
Round |
.680 |
1 |
11/8 |
2,500 |
9 |
27 |
3/8 |
1/2 |
11 |
11 |
| 557902 |
JCO-2R-RV |
Round |
.680 |
2 |
11/8 |
2,300 |
18 |
29 |
3/8 |
1/2 |
12 3/4 |
13 |
| 557906 |
JCO-2H-RV |
Hex |
.580 |
2 |
11/8 |
2,300 |
18 |
29 |
3/8 |
1/2 |
12 3/4 |
13 |
| 557903 |
JCO-3R-RV |
Round |
.680 |
3 |
11/8 |
2,200 |
25 |
31 |
3/8 |
1/2 |
14 3/8 |
14 |
| 557907 |
JCO-3H-RV |
Hex |
.580 |
3 |
11/8 |
2,200 |
25 |
31 |
3/8 |
1/2 |
14 3/8 |
14 |
| 557904 |
JCO-4R-RV |
Round |
.680 |
4 |
11/8 |
1800 |
42 |
33 |
3/8 |
1/2 |
16 |
15 |
| 557908 |
JCO-4H-RV |
Hex |
.580 |
4 |
11/8 |
1800 |
42 |
33 |
3/8 |
1/2 |
16 |
15 |
| 557803 |
JCO-3R-RVST |
Round |
.680 |
3 |
11/8 |
2,200 |
25 |
31 |
3/8 |
1/2 |
14 3/8 |
14 |
| 557701 |
FBCH-1R |
Round |
.680 |
1 1/2 |
11/8 |
2,800 |
14 |
28 |
7/8 |
1/2 |
14 |
18 |
| 557705 |
FBCH-1H |
Hex |
.580 |
1 1/2 |
11/8 |
2,800 |
14 |
28 |
7/8 |
1/2 |
11 |
18 |
| 557702 |
FBCH-2R |
Round |
.680 |
2 1/2 |
11/8 |
2,000 |
24 |
28 |
7/8 |
1/2 |
15 5/8 |
19 |
| 557706 |
FBCH-2H |
Hex |
.580 |
2 1/2 |
11/8 |
2,000 |
24 |
28 |
7/8 |
1/2 |
15 5/8 |
19 |
| 557703 |
FBCH-3R |
Round |
.680 |
3 |
11/8 |
1,900 |
31 |
28 |
7/8 |
1/2 |
16 5/8 |
20 |
| 557707 |
FBCH-3H |
Hex |
.580 |
3 |
11/8 |
1,900 |
31 |
28 |
7/8 |
1/2 |
16 5/8 |
20 |
| 557704 |
FBCH-4R |
Round |
.680 |
4 1/2 |
11/8 |
1,500 |
43 |
28 |
7/8 |
1/2 |
18 1/2 |
22 |
| 557708 |
FBCH-4H |
Hex |
.580 |
4 1/2 |
11/8 |
1,500 |
43 |
28 |
7/8 |
1/2 |
18 1/2 |
22 |
NOTE:All Units Operate at 90 psi. |
