JET Manual & Electric Pallet Jack

Jet High Lift Pallet Truck

Features

  • Designed to lift and transport skids or open-style pallets with ease
  • Great for use as a mobile work station to reduce lifting injuries
  • Heavy-duty steel frame with tough powder coat finish
  • Powerful two-stage hydraulic pump may be operated by steering handle or convenient foot pedal
  • Pump also features quick lifting action with no load
  • Top -of stroke and safety overload bypass system prevents damage to hydraulic pump
  • Wheel bearings are double sealed and lubricated for life
  • Rounded fork tips for trouble-free pallet entry and exit
  • Large, ergonomic cushion grip handle with fingertip controls
  • Automatic floor brake engages when forks are raised
  • Standard or narrow aisle models
Specifications
Model Stock Number Cap. (lbs) Min. Fork Height (in) Max. Fork Height (in) Load Center Overall Fork Dim. (l x w x h) Fork Width Load Wheels (od x w/in) Steer Wheels (od x w/in) Ship Weight 9lbs) Carton Pack
HLPT-2745 140088 2200 3 3/8 32 26 3/4 45 x 27 6 1/4 3 x 2 nylon 6 x 2 poly/steel 248 1

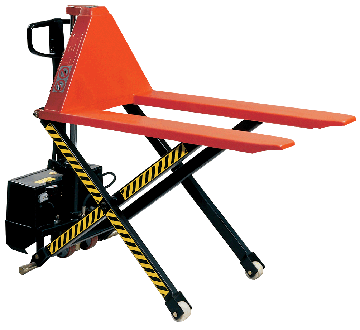

JET Electric High Lift Pallet Truck

Features

  • Designed to lift and transport skids or open-style pallets with push-button ease

  • Doubles as a mobile work station to reduce fatigue and lifting injuries

  • Heavy-duty steel frame with tough powder coat finish

  • Dependable Fenner/Haldex Barnes mini-hydraulic pump system

  • Automatic overload bypass provides extra pump protection

  • AC Delco® Maintenance-free 12V, 60Hz battery

  • Convenient 115V, 1Ph on board charger with industrial power cables

  • Lifts capacity load in 18 seconds

  • Rounded fork tips for trouble free pallet entry and exit

  • Large, ergonomic steering handle with fingertip controls

  • Automatic floor brake engages when forks are raised

  • Standard or narrow aisle models

Specifications
Model Stock Number Cap. (lbs) Min. Fork Height (in) Max. Fork Height (in) Fork Width (in) Overall Fork Dim. (l x w x h) Load Wheels (od x w/in) Steer Wheels (od x w/in) Overall Dim. (l x w x h)  Ship Weight 9lbs) Carton Pack
EHPT-2745 140090 2200 3 1/4 31 1/2 6 3/8 45 x 26 3/4 3 x 2 nylon 6 x 2 poly/steel 63 x 27 3/16 x 50 409 1

WMH140088
$869.00 $673.60
"HLPT-2745, 27"" x 45"" Forks (WEIGHT = 289 lbs ) :::: FREE TRUCK SHIPPING to any Commercial Address **Note: Residential Home Businesses are NOT Considered a Commercial Address (Residential, Lift-Gate and/or Redelivery Charges Not Included)"

WMH140090
$2,802.00 $1,849.20
"EHPT-2745, 27"" x 45"" Forks :::::FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"

WMH140095
$55.57 $47.25
"SP-2745, Optional Steel Platform, Fits HLPT/EHPT-2745 (WEIGHT = 51 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

140001sm.jpg WMH140001
$88.49 $75.25
"PAPL-1, 1 Ton (WEIGHT = 13 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "
