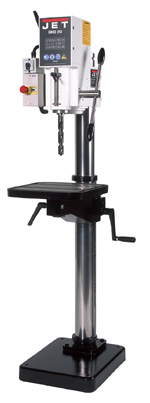

JET GHD20 Series Drill Presses

20" Geared Head Drill and Tapping Press

  • Heavy-duty design allows a variety of precision drilling and tapping applications

  • Easy to read internal depth gauge>

  • Three power down feeds (GHD-20PFT)

  • Calibrated fine down feed built-in

  • Built-in spindle lock

  • Head tilts left or right

  • Easy accessible table raiser

  • Large production table and T-slotted base

Standard Equipment

  • Integrated tapping and reversing controls

  • T-slotted worktable

  • Drill chuck arbor

  • Draw bar

Specifications
Stock Number (GHD-20T) 354022
Stock Number (GHD-20PFT) 354026
Model GHD-20T/GHD-20PFT
Cast Iron Drilling Capacity (in) 1 1/2
Cast Iron Tapping (in) 13/16
Steel Drilling Capacity (in) 1 1/4
Column Diameter (in) 4 1/2
Max. Distance Spindle to Column (in) 10
Spindle Taper MT3
Spindle Travel (GHD-20PFT/in)
Manual 4 1/2
Auto 4 1/4
Tapping 4 7/8
Quill Diameter (in) 3
Spindle Distance to Base (in) 44 3/8
Spindle Distance to Table (in) 30 7/8
Table Size (in)  21 1/4 x 18 1/2
T-Slots, Number & Size (in) (2) & 5/8
T-Slot Centers (in) 6 1/4
Number of Spindle Speeds 12
Range of Spindle Speeds 60-3000
Number of Powerfeeds (GHD-20PFT only) 3
Range of Powerfeeds (GHD-20PFT only) 0.004, 0.007, 0.01
Motor (TEFC) 2 HP, 3 Ph, 2-Speed, 230V Only
Floor Space Required (L x W x H/in) 32 x 24 x 71
Net Weight (lbs) 670

Optional Equipment

  • Drill chucks

  • Drill chuck arbors

  • Rotary phase converter (577302)

  • Vises

  • Clamping Kit

NOTE: Use of static phase converter will void warranty

Additional Documentation
Metalworking Catalog Page
Adobe Acrobat Required to read these files.

JET Milling/Drilling Accessories



354024_sm.jpg WMH354022
$4,365.00 $3,299.00
"(Want a Better Price Call 800-458-3687) GHD-20T, Manual Feed with Tapping, 1-1/4"" Drilling Capacity, 2HP, 3Ph, 230V, 12 Speeds *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"

WMH660058
$155.00 $125.01
"CK-58, Clamping Kit 52-pc with Tray for 11/16"" and 3/4"" T-slot *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout (Commercial, Residential and/or Tailgate Deliveries all at one low price) (090109)"

354026_sm.jpg WMH354026
$5,185.00 $4,199.00
"(Want a Better Price Call 800-458-3687) GHD-20PFT, Power Down Feed with Tap, 1-1/4"" Drilling Capacity, 2HP, 3Ph, 230V, 12 Speeds *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"
