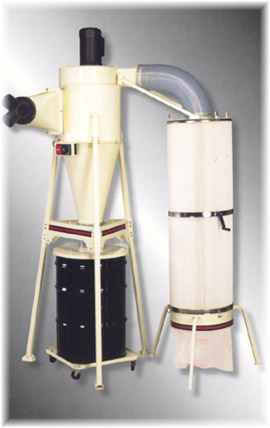

High Efficiency Cyclonic Dust Collection System
Features
- Cyclononic Action-separates the heavier chips and particles and disposes
of them into the 55 gallon drum
- Large 8-fin, 14" Steel Impeller-creates high velocity air flow, .lets
lighter dust particles pall through and be trapped in the filter
- Filter Bag-provides almost 40 sq. ft. of filtration surface area of all
particles 5 microns or larger
- Collection Bag Has "Snap-In" Design-for quick, easy installation and
removal
- Exclusive Pressure Tube-allows use of a plastic collection bag in the
drum without getting sucked into the cyclone
- Special Rectangular Inlet Pipe-for added separation and additional air
flow
- Steel Construction With Welded Seams and Powder-Coated Paint-ensures
long, dependable performance
- 3HP Motor is Totally Enclosed and Fan-Cooled-to keep dust and
contaminants out
|
Specifications |
| Stock Number |
708653K |
| Model |
JC-3BF |
| Impeller Diam. (in) |
14 |
| Impeller Fins |
8 |
| Impeller Material |
Steel |
| Air Inlet (in) |
8 |
| Air Outlet (in) |
8 |
| Separator Tank Diam. (in) |
19 1/2 |
| Separator Tank Ht. (in) |
17 3/8 |
| Filter (dia. x H/in) |
20 x 90-1/2 |
| Filter Specs./Filtration |
99%@5 microns/36.64 sq. ft. |
| Max. Air Flow w/Filters (CFM) |
1450 |
| Max. Static Pressure (in of water) |
12.12 |
| Sound Rating @ 3' |
80dB |
| Overall Dimension (l x w l h/in) |
67 3/4 x 45 3/8 x 111 |
| Motor |
3 Hp. 1Ph, 230V |
| Net Weight (lbs) |
257 |
