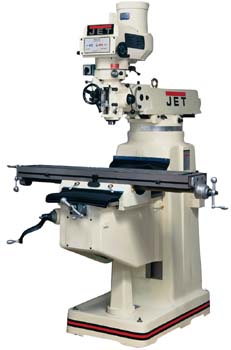

JET JTM-1050 EVS Milling Machines

Electronic Variable Speed Vertical Milling Machines

Features

  • Tolerance test sheet included

  • Runs quieter and smoother than conventional variable speed head

  • Low maintenance head has less moving parts

  • No belt slippage allows more power at the spindle

  • Meehanite casting

  • Hardened and ground table

  • Chrome lead screws on X and Y axis

  • Turcite B on X axis and Y axis

  • Large diameter quill is chromed

  • High precision Class 7 spindle bearings

  • No fuse breaker power connection

  • Heavy-duty motor drive ¥ Chrome plated motor shaft with bearing support at end

  • One-piece quill pinion and shaft

  • Three-stage power downfeed with automatic stop

  • Fine handwheel downfeed and lever downfeed

  • Heavy-duty spindle brake

  • Double knee and table locks

  • Ram equipped with double locks

  • Hardened and ground square vertical knee ways and cross ways

  • Adjustable gibs throughout

  • Dish in base with internal coolant sump (Coolant pump not included)

Specifications

Stock Number:

 690060 690062

Model:

 JTM-1050EVS/230 JTM-1050EVS/460

Spindle Taper:

 R-8 R-8

Diameter of Quill (in):

 3-3/8 3-3/8

Number of Spindle Speeds:

 Variable Variable

Range of Spindle Speeds (RPM):

 10 - 3,600 10 - 3,600

Downfeeds of Spindle (per/rev/in):

 0.0015 - 0.003 - 0.006 0.0015 - 0.003 - 0.006

Spindle Travel:

 5 5

Head Movement:

 90 degrees R & L 45 degrees F & B 90 degrees R & L 45 degrees F & B

Distance Spindle to Table (max/in):

 19 19

Distance Spindle to Column (max/in):

 26-1/2 26-1/2

Distance Spindle to Column (min/in):

 6 6

Collet Capacity (in):

 1/8 - 7/8 1/8 - 7/8
Size of Table (in): 10 x 50 10 x 50
Longitudinal Table Travel (in): 35 35
Cross Travel (in): 16 16
T-Slots, Number & Size (in): 3 & 5/8 3 & 5/8
T-Slot Centers (in): 2-1/2 2-1/2
Max Weight of Workpiece (lbs): 720 720
Travel of Knee (in): 16-1/2 16-1/2
Overarm Travel (in): 21-1/4 21-1/4
Motor: 3 HP, 3 Ph 230V only* 3 HP, 3 Ph 460V only
Overall Dimensions (WxDxH/in): 95-3/4 x 70-5/8 x 88 95-3/4 x 70-5/8 x 88
Net Weight (lbs): 3,000 3,000

Standard Equipment

  • One-shot lubrication system

  • Way covers

  • Draw bar

  • Tool box with tools

Optional Equipment

  • Clamping kit (660012)

  • R-8 Collet Set (650132)

  • Table powerfeed attachments (350089 and 350086K)

  • 8" riser block (350096)

  • Digital readouts installed

NOTE: Use of ANY phase converter will void warranty. JTM-1050EVS/230 will operate on single phase 230V Power

* JTM-1050EVS/230 will operate on single phase 230V power.

Additional Documentation
  Metalworking Catalog Page
Adobe Acrobat Required to read these files.



People That Purchased the JET JTM-1050 EVS Milling Machine Also Purchased A
  • Clamping kit (660012)
  • R-8 Collet Set (650132)
  • 6" Riser Block (350090)
  • Table Powerfeed Attachments
  • Digital Read Out (DRO)

WMH660220 R-8 Milling Tool Kit

Includes:

  • 2" Boring Head with R-8 shank
  • 5 HSS Boring Bars
  • 2-1/2" Fly Cutter with R-8 Shank
  • 3/8" HSS Tool Bit for Fly Cutter
  • R8 x MT3 Adapter
  • 48 x JT6 Adapter
  • R8 Shank with Blank End which can be Machined for Special Uses
  • 3-Piece Edge Finder Set
  • Wiggler set
  • 3 Hex Key Wrenches for all Tool Holders
  • Works with R8 Spindle Milling Machines
 		   WMH660100KT Milling Accessory Kit

Includes:

  • 6pc R8 Collet Set
  • 52 pcs Clamping Kit
  • 24 pcs Tooling Kit
  • 3/8" HSS Tool Bit for Fly Cutter
  • 6" Verti-Lock Machine Vise



Milling Machine Accessories Packages
 DRO'S , Power Feeds & Accessories
JET Milling Accessories

JTM-1050EVSsm.gif WMH690060
$14,399.00 $12,846.68
"JTM-1050EVS/230, 10"" x 50"" Table, R-8 Taper, EVS, 3HP, 3Ph, 230V Only *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690062
$14,399.00 $12,846.68
"JTM-1050EVS/460, 10"" x 50"" Table, R-8 Taper, EVS, 3HP, 3Ph, 460V Only *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH690127
$17,250.00 $14,348.42
"JTM-1050EVS/230 Mill with ACU-RITE 200S DRO and X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH690137
$17,250.00 $14,347.33
"JTM-1050EVS/460 Mill with ACU-RITE 200S DRO and X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH690189
$14,699.00 $12,259.04
"JTM-1050EVS/460 Mill with X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690238
$17,280.00 $14,052.61
"JTM-1050EVS/230 Mill with X Powerfeed and Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691210
$15,999.00 $13,422.79
"JTM-1050EVS/230 Mill with NEWALL C80 DRO *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691211
$17,299.00 $14,348.42
"JTM-1050EVS/230 Mill with NEWALL C80 DRO and X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691212
$18,050.00 $15,274.06
"JTM-1050EVS/230 Mill with NEWALL C80 DRO and X&Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691213
$16,699.00 $13,989.30
"JTM-1050EVS/230 Mill with NEWALL 3-Axis (Quill) C80 DRO *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691214
$17,650.00 $14,707.54
"JTM-1050EVS/230 Mill with NEWALL 3-Axis (Quill) C80 DRO and X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691215
$18,650.00 $15,498.92
"JTM-1050EVS/230 Mill with NEWALL 3-Axis (Quill) C80 DRO and X&Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690056
$16,899.00 $14,204.34
"JTM-1050EVS/230 Mill with 3-axis ACU-RITE 200S DRO (Knee) Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690155
$18,899.00 $15,736.88
"JTM-1050EVS/230 Mill with 3-axis ACU-RITE 200S DRO (Knee) and X & Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690913
$34,099.00 $29,899.00
"JTM-1050EVS/230 Mill with ANILAM 3-axis CNC Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH691216
$16,099.00 $13,422.79
"JTM-1050EVS/460 Mill with NEWALL C80 DRO *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691217
$17,275.00 $14,348.42
"JTM-1050EVS/460 Mill with NEWALL C80 DRO and X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691218
$18,050.00 $14,949.87
"JTM-1050EVS/460 Mill with NEWALL C80 DRO and X & Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691219
$16,699.00 $13,988.21
"JTM-1050EVS/460 Mill with NEWALL 3-Axis (Quill) C80 DRO *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691220
$17,650.00 $14,707.54
"JTM-1050EVS/460 Mill with NEWALL 3-Axis (Quill) C80 DRO and X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691221
$18,625.00 $15,498.92
"JTM-1050EVS/460 Mill with NEWALL 3-Axis (Quill) C80 DRO and X & Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690154
$17,650.00 $14,713.00
"JTM-1050EVS/460 Mill with ACU-RITE 200S DRO, X & Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690138
$16,899.00 $14,227.26
"JTM-1050EVS/460 Mill with 3-Axis ACU-RITE 200S DRO (Knee) and X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690912
$31,399.00 $27,399.00
"JTM-1050EVS/230 Mill with ACU-RITE 3-axis CNC Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690902
$28,599.00 $24,899.00
"JTM-1050EVS/230 Mill with ACU-RITE 2-axis CNC Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690915
$28,099.00 $26,999.00
"(Want a Better Price Call 800-458-3687) JTM-1050EVS/230 Mill with ANILAM 2-axis CNC Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690904
$31,799.00 $24,899.00
"JTM-1050EVS/460 Mill with ACU-RITE 2-axis CNC Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690914
$31,399.00 $27,399.00
"JTM-1050EVS/460 Mill with ACU-RITE 3-axis CNC Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690917
$28,099.00 $26,999.00
"(Want a Better Price Call 800-458-3687) JTM-1050EVS/460 Mill with ANILAM 2-axis CNC Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690919
$33,099.00 $29,899.00
"JTM-1050EVS/460 Mill with ANILAM 3-axis CNC Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690011
$14,699.00 $12,259.04
"JTM-1050EVS 220V Mill with X Table Powerfeed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH690404
$15,563.00 $13,130.45
"JTM-1050EVS/230 Mill with 411 DRO & X-AXIS TPFA *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH690405
$16,063.00 $13,248.14
"JTM-1050EVS/460 Mill with 411 DRO & X-AXIS TPFA *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH690406
$18,263.00 $15,137.62
"JTM-1050EVS/230 with 200S, X & Y TPFA *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH690414
$16,999.00 $13,898.71
"JTM-1050EVS Mill ANILAM 411 DRO, X & Y AXIS *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH691231
$17,650.00 $15,313.35
"JTM-1050EVS/460 Mill with C80 DRO, X & Y Table Powerfeed with Air Drawbar *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


660100kt-sm.jpg WMH660100KT
$1,265.00 $799.00
"(Want a Better Price Call 800-458-3687) Milling Accessory Kit *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout (Commercial, Residential and/or Tailgate Deliveries all at one low price) (090109)"


660220-sm.jpg WMH660220
$289.00 $200.06
"24-piece Milling Tool Kit for R8-Spindle Milling Machines *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout (Commercial, Residential and/or Tailgate Deliveries all at one low price) (090109)"

WMH987000005
$235.14 $199.95
"TPFA-2Y Installation Charge *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH350087
$759.00 $499.00
"(Want a Better Price Call 800-458-3687) TPFA-2Y, Y-Axis Table Power Feed 135lb. Torque *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout (Commercial, Residential and/or Tailgate Deliveries all at one low price) (090109)"

TPFA-2X.jpg WMH350089
$749.00 $489.00
"(Want a Better Price Call 800-458-3687) TPFA-2X, X-Axis Table Power Feed 135lb. Torque *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout (Commercial, Residential and/or Tailgate Deliveries all at one low price) (090109)"

WMHA630
$1,052.00 $973.67
"Air Power Draw Bar for JTM-4VS, JTM-1050, & JTM-1050EVS *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH350096
$670.00 $544.53
"RB-8-1050, 8"" Riser Block for 690050, 690060, & 690062 *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"


WMH350098K
$823.00 $709.58
"TPFA-2Y, Y-Axis Table Power Feed 150lb. Torque *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"
