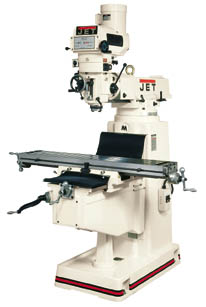

JET JTM-1055 EVS Milling Machine

Features
  • Tolerance test sheet included
  • Meehanite and ground table certified to be 52C Rockwell hardness
  • Chrome lead screws on X and Y axis
  • Boxed style ways on Y and Z axis
  • Turcite B on X and Y axis
  • Satin chrome finished dials
  • Precision bored and honed milling head
  • Large diameter quill is chromed
  • High precision Class 7 spindle bearings
  • Auxiliary fan cools the spindle head
  • Chrome plated motor shaft has lower bearing support
  • Motor pulleys are ground to increase belt lift
  • One-piece quill pinion and shaft
  • Three-stage power downfeed with automatic stop
  • Fine handwheel and rapid lever downfeed
  • Heavy-duty pindle brake
  • Duble knee, table and ram locks
  • Dished-in base with internal coolant sump (coolant pump not included)
Standard Equipment
  • One-shot lubrication system
  • Way covers
  • Draw bar
  • Tool box with tools

Additional Documentation

Metalworking Catalog Page

Adobe Acrobat Required to read these files.
Optional Equipment
  • Clamping kit (660012)
  • Table power feed attachments (350089 and 350086K)
  • Rotary phase converter (577303)
  • Digital readouts installed

NOTE: Use of static phase converter will void warranty

SPECIFICATIONS
Stock Number: 690055
Model: JTM-1055
Spindle Taper: NST#40
Diameter of Quill (in): 4 1/8
Number of Spindle Speeds: Variable
Range of Spindle Speeds (RPM): 80 - 3,800
Downfeed of Spindle (per/rev/in): 0.0015 - 0.003 - 0.006
Spindle Travel (in): 5
Head Movement: 90 R & L
Distance Spindle to Table (max/in): 20
Distance Spindle to Column (max/in): 21 5/8
Collet Capacity (in): 1/8 - 7/8
Size to Table (in): 10 x 54
Longitudinal Table Travel (in): 38
Cross travel (in): 17
T-Slot (Number & Size/in): 3& 5/8
T-Slot Centers (in): 2 1/2
Max Weight of Workpiece (lbs): 800
Travel of Knee (in): 17 1/2
Overarm Travel (in): 16 1/2
Motor: 5 HP, 3 Ph 230/460V Prewired 230V
Overall Dimensions (LxWxH/in): 108 x 80 x 92
Net Weight (lbs): 3,300

WMH690055
$14,899.00 $12,484.71
"JTM-1055, 10"" x 54"" Table, #40 Taper, 5HP, 3Ph, 230/460V *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690218
$17,099.00 $14,282.93
"JTM-1055 Mill with X& Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH691222
$16,775.00 $14,424.83
"JTM-1055 Mill with NEWALL C80 DRO *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH691223
$17,699.00 $14,499.00
"(Want a Better Price Call 800-458-3687) JTM-1055 Mill with NEWALL C80 DRO and X Powerfeed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"

WMH691224
$18,599.00 $15,199.00
"(Want a Better Price Call 800-458-3687) JTM-1055 Mill with NEWALL C80 DRO X and Y Powerfeed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH691233
$19,899.00 $16,460.57
"JTM-1055 Mill with NEWALL C80 with X, Y and Knee TPFA *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH691225
$17,299.00 $14,965.15
"JTM-1055 Mill with NEWALL C80 3-Axis (Quill) DRO *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH691226
$18,250.00 $15,717.23
"JTM-1055 Mill with NEWALL C80 3-Axis (Quill) DRO and X Powerfeed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH691227
$19,299.00 $16,500.96
"JTM-1055 Mill with NEWALL C80 3-Axis (Quill) DRO X and Y Powerfeed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"

WMH690220
$17,999.00 $14,299.00
"(Want a Better Price Call 800-458-3687) JTM-1055 Mill with ACU-RITE 200M DRO and X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"

WMH690242
$19,599.00 $16,741.10
"JTM-1055 Mill with 3-axis ACU-RITE 200M DRO (Knee), X and Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Includes Commercial, Residential and/or Tailgate Deliveries. (090109)"


WMH690270
$15,999.00 $12,999.00
"(Want a Better Price Call 800-458-3687) JTM-1054R Mill with 411 DRO & X-TPFA *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690271
$16,789.00 $13,699.00
"(Want a Better Price Call 800-458-3687) JTM-1054R Mill with 200S DRO & X-TPFA *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690275
$16,299.00 $13,299.00
"(Want a Better Price Call 800-458-3687) JTM-1055 Mill with Anilam 411 Wizard DRO and X Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"


WMH690222
$18,699.00 $14,999.00
"(Want a Better Price Call 800-458-3687) JTM-1055 Mill with ACU-RITE 200M DRO and X & Y Powerfeed Installed *** FREE SHIPPING on this Order to Any Location within the Lower 48 States. Including Commercial, Residential &/or Tailgate Deliveries. (090109)"

TPFA-2X.jpg WMH350089
$749.00 $489.00
"(Want a Better Price Call 800-458-3687) TPFA-2X, X-Axis Table Power Feed 135lb. Torque *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout (Commercial, Residential and/or Tailgate Deliveries all at one low price) (090109)"

WMH987000005
$235.14 $199.95
"TPFA-2Y Installation Charge *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH350087
$759.00 $499.00
"(Want a Better Price Call 800-458-3687) TPFA-2Y, Y-Axis Table Power Feed 135lb. Torque *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout (Commercial, Residential and/or Tailgate Deliveries all at one low price) (090109)"

WMHA631
$1,210.00 $1,080.63
"Air Power Draw Bar for JTM-1055 *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"

WMH660012
$130.00 $100.02
"CK-12, Clamping Kit 52-pc with Tray for 9/16"" and 5/8"" T-slot *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout (Commercial, Residential and/or Tailgate Deliveries all at one low price) (090109)"


WMH350098K
$823.00 $709.58
"TPFA-2Y, Y-Axis Table Power Feed 150lb. Torque *** See the NEW JET, Wilton, POWERMATIC & Performax Freight Chart at Checkout. Commercial, Residential and/or Tailgate Deliveries all at one low price. (090109)"
