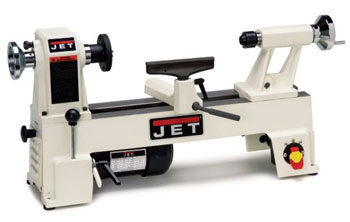

JET JML-1014 Mini Lathe at Southern Tool Catalog

Specially designed and built exclusively by JET
Heavy-duty cast iron lathe bed ensures stability and minimal operating vibration
Heavy-duty cast iron headstock and tailstock provide rigidity, strength and years of trouble-free operation
Tailstock is hollow allowing long hole boring
Quick release levers allow for easy & accurate positioning of tool rest and tailstock
A 1/2 HP totally enclosed, fan cooled motor powers 6 spindle speeds ranging from 500 to 3,975 RPM
Removable safety toggle switch will eliminate accidental operation
Convenient adjustment handle to easily tilt motor while changing speeds
Solid rubber feet to eliminate movement while in operation
Solid tailstock contains live center with a full 2" ram capacity
Removable pin in live center for boring through stock

Stock Number 708354
Constructed of heavy duty steel tubing for additional support
Specially designed V-style legs which allow more room under the lathe for maneuvering
Adjustable height to accommodate all turners
Mounts directly to your JET Mini Lathe

Additional Documentation

Woodworking Catalog Page

Adobe Acrobat Required to read these files.

Specifications
Stock Number:	708351VS

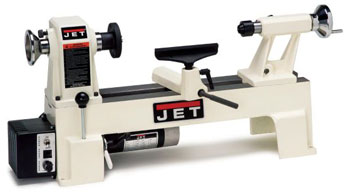

Model:	JML-1014VS
Capacities Swing Over Bed (in):	10
Swing Over Tool Rest Base (in):	7-1/2
Working Distance Between Centers (in):	14
Speeds (RPM):	Variable-500-3900
Spindle Nose (in x T.P.I.):	1 x 8
Hole (completely through spindle/in):	3/8
Headstock Taper:	MT-2
Tailstock Taper:	MT-2
Hole Through Tailstock (in):	3/8
Ram Travel (in):	2
Overall Dimensions (HxWxL/in):	24-5/8 x 7-1/4 x 14
Motor (TEFC):	1/2 HP, 1 Ph 115V Only
Net Weight (lbs):	69

2" Ram Capacity 6-speed step pulley
