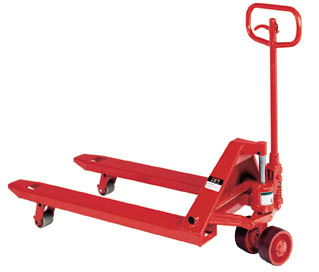

5,000 lbs Pallet Jacks

Jet Material Handling Catalog Page # 33

If you do not have Adobe Acrobat Reader: click here to download it for free.

Features

• High quality 5,000 lbs. capacity
• Lowered height of 2-1/2" for smaller pallet openings
• Touch-control neutral lever
• Polyurethane enamel coating for a durable finish
• Automatic-return handle assumes upright position when work is done
• Pump features top-of-stroke and safety overload bypass system
• "D" handle operates from the side as well as from standard rear position
• Extra wide nylon load wheels with double sealed ball bearings
• Polyurethane rubber covered steel steer wheels with ball bearings
• Additional zerk fittings for easy lubrication
• Solid steel lifting rods for extra strength

Specifications
Stock No.	Model	W1	W2	L1	L2	H1	H2	A	B	C	Net Wt. (lbs)
140085	PT-2036J	20-1/2	6	36	51	6-1/4	2-1/2	6-1/4 x 2-3/4	2-1/2 x 4	45-1/8	150
140084	PT-2042J	20-1/2	6	42	57	6-1/4	2-1/2	6-1/4 x 2-3/4	2-1/2 x 4	45-1/8	161
140083	PT-2048J	20-1/2	6	48	63	6-1/4	2-1/2	6-1/4 x 2-3/4	2-1/2 x 4	45-1/8	172
140082	PT-2736J	27	6	36	51	6-1/4	2-1/2	6-1/4 x 2 3/4	2-1/2 x 4	45-1/8	174
140081	PT-2742J	27	6	42	57	6-1/4	2-1/2	6-1/4 x 2-3/4	2-1/2 x 4	45-1/8	185
140080	PT-2748J	27	6	48	63	6-1/4	2-1/2	6-1/4 x 2-3/4	2-1/2 x 4	45-1/8	196
140033	PT-3348J	33	6	48	63	6-1/4	2	6-1/4 x 2-3/4	2 x 3-3/4	45-1/8	184
140080 is our most popular 5000 lbs Pallet Jack!

Dare to Compare - PT-2748W Premium Pallet Truck
Model	JET PT-2748J	Bishamon BS-55A	Multiton TM55-27-48	Rol-Lift Series T
Capacity (lbs)	5,000	5,500	5,500	5,500
Lowered Height (in)	2-7/8	2-15/16	2-15/16	2-15/16
Push Rod Material	Solid Steel	Solid Steel	Tube Steel	Tube Steel
Robotic Welds	Yes	No	Yes	No
Articulating Steer Wheels	Standard	Standard	N/A	Standard
Net Weight (lbs)	196	217	153	234
Warranty	2 Years	1 Year	1 Year (2 on pump)	2 Years
