5,000 lbs Pallet Jacks

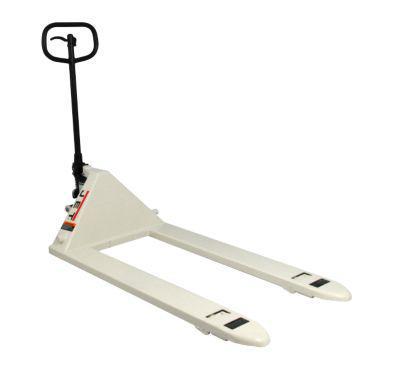

The Jet PT-1636J, 16in x 36in Forks

  • 5000 pound capacity
  • High-quality welded steel construction with a durable powder coat finish
  • 2-1/2 in low profile design for smaller size pallet openings
  • Easy-to-use with single hand operation, fingertip controls and 180 degree turning radius
  • Extra wide poly-over-steel steer wheels provide a smooth, quiet ride with added traction and stability
  • Wheel bearings are double sealed and lifetime lubricated
Detailed Specifications
Part Number 151003
A 6 in
B 2 in
Brand Jet
C 45 1/8 in
H1 6 1/4 in
H2 2 1/2 in
Height 16 inch
L1 36 in
L2 51 in
Length 52 inch
Model Number PT-1636J
Net Weight 154 pound
W1 16 in
W2 6 in
Width 19 inch

s-h alt

140083 Manual

The Jet PT-2036J, 20 in x 36 in Forks
The Jet PT-2042J, 20 in x 42 in Forks

The Jet PT-2048J, 20 in x 48 in Forks
have a 2 Year warranty

  • 5000 pound capacity
  • High-quality welded steel construction with a durable powder coat finish
  • 2-1/2 in low profile design for smaller size pallet openings
  • Easy-to-use with single hand operation, fingertip controls and 180 degree turning radius
  • Extra wide poly-over-steel steer wheels provide a smooth, quiet ride with added traction and stability
  • Wheel bearings are double sealed and lifetime lubricated
Detailed Specifications
Part Number 151004 151005 151006
A 6 in 6 in 6 in
B 2 in 2 in 2 in
Brand Jet  Jet Jet
C 45 1/8 in 45 1/8 in 45 1/8 in
Capacity 5000 Lbs 5000 Lbs 5000 Lbs
Fork Width 6 in - 6 in
H1 6 1/4 in 6 1/4 in 6 1/4 in
H2 2 1/2 in 2 1/2 in 2 1/2 in
Height 29 inch - 45.5 inch
L1 36 in 42 48 in
L2 51 in 57 63 in
Length 88.5 inch 23 inch 64 inch
Load Wheel Size (ODxW) 2 1/2 x 3 3/4 in - 2 1/2 x 3 3/4 in
Maximum Height 6 1/4 in - 6 1/4 in
Minimum Height 2 1/2 in - 2 1/2 in
Model Number PT-2036J  PT-2042J PT-2048J
Net Weight 203.5 pound 176.5 pound 167 pound
Overall Dimension (LxWxH) 51 x 20 1/2 x 45 1/8 in - 63 x 20 1/2 x 45 1/8 in
Overall Fork Dimensions (LxW) 36 x 20 1/2 in - 48 x 20 1/2 in
Steer Wheels (ODxW) 6 1/4 x 2 3/4 in - -
W1 20 1/2in 20 1/2 in 20 1/2 in
W2 6 in 6 in 6 in
Width 23 inch 89 inch 20.6 inch

s-h alt

140080 Manual

The Jet PT-2742J, 27in x 42in Forks
The Jet PT-2748J, 27in x 48in Forks

  • 5000 pound capacity
  • High-quality welded steel construction with a durable powder coat finish
  • 2-1/2" low profile design for smaller size pallet openings
  • Easy-to-use with single hand operation, fingertip controls and 180 degree turning radius
  • Extra wide poly-over-steel steer wheels provide a smooth, quiet ride with added traction and stability
  • Wheel bearings are double sealed and lifetime lubricated
Detailed Specifications
Part Number 151008 151009
A 6 in 6 in
B 2 in 2 in
Brand Jet Jet
C 45 1/8 in 45 1/8 in
Capacity - 5000 Lbs
Fork Width - 6 in
H1 6 1/4 in 6 1/4 in
H2 2 1/2 in 2 1/2 in
Height 29 inch 15 inch
L1 42 in 48 in
L2 57 in 63 in
Length 88.5 inch 62.5 inch
Load Wheel Size (ODxW) - 2 1/2 x 3 3/4 in
Maximum Height - 6 1/4 in
Minimum Height - 2 1/2 in
Model Number PT-2742J PT-2748J
Net Weight 203.5 pound 203.5 pound
Overall Dimension (LxWxH) - 63 x 27 x 45 1/8 in
Overall Fork Dimensions (LxW) - 48 x 27 in
Steer Wheels (ODxW) - 6 1/4 x 2 3/4 in
W1 27 in 27 in
W2 6 in 6 in
Width 23 inch 27 inch

s-h alt

s-h alt WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.

More information about 140001

140001

  • 1 Ton

140002

  • 2 Ton

  • Heavy-duty, solid steel pallet pullers are designed to pull pallets across a smooth floor
  • Heat treated, carbon steel teeth
  • For unloading trucks at ground level
  • Extends forklift reach
  • Single scissor actiopn provides superior grip



More Informationshow more
WMH151003 mfg. item #: 151003
$428.29   msrp $650.00
PT-1636J, 16 X 36 FORKS
  51
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.26


More Informationshow more
WMH151004 mfg. item #: 151004
$428.29   msrp $650.00
PT-2036J, 20-1/2 X 36 FORKS
  51
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.26


More Informationshow more
WMH151005 mfg. item #: 151005
$428.29   msrp $650.00
PT-2042J, 20-1/2 X 42 FORKS
  51
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.26


More Informationshow more
WMH151006 mfg. item #: 151006
$428.29   msrp $650.00
PT-2048J, 20-1/2 X 48 FORKS
  51
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.26


More Informationshow more
WMH151008 mfg. item #: 151008
$428.29   msrp $650.00
PT-2742J, 27 X 42 FORKS
  51
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.26


More Informationshow more
WMH151009 mfg. item #: 151009
$428.29   msrp $650.00
PT-2748J, 27 X 48 FORKS
  51
Limited time! FREE SHIPPING, FREE TAILGATE & RESIDENTIAL DELIVERIES on all JET, POWERMATIC, WILTON and Performax products on this order. See additional details at checkout.26
