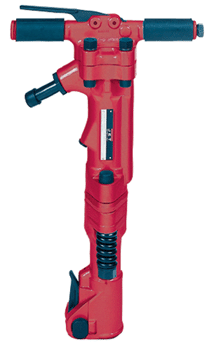

JET Pavement Breakers

PAVING BREAKERS

  • Large diameter, smooth stroke piston

  • Full control throttle

  • Replaceable front head bushing

  • Four-bolt head-to-cylinder construction

  • Efficient valve chest for low maintenance Drop-forged cylinder

  • Chisel retainer latch

  • Rubber handle grips

  • All shank sizes accommodate standard steel



Specifications
Stock No Model No Hex Shank (in) Piston Dia. (in) Stroke
(in)		 Blows Per Min. Ft/lbs Per Blow"
(in)		 Air Consum.
(cfm)		 Air Inlet
(NPT/in)		 Air Hose
(ID/in)		  Length Weight
550035 PB-30-1 1 x 4 1/4 1 3/4 3 3/8 1,550 46 49 1/2 1/2  22 1/2 33
550075 JPB-60-1-1/8 1-1/8x6 2 1/4 5 1,400 89 58 3/4 3/4  25 3/8 66
550076 JPB-60-1-1/4 1 1/4 x 6 2 5/8 5 1,250 89 58 3/4 3/4  28 1/2 93
550077 JPB-90-1-1/8 1 1/8 x 6 2 5/8 6 1/2 900 90 77 3/4 3/4  29 1/2 58
550078 JPB-90-1-1/4 1 1/4 x 6 2 7 1/4 900 90 77 3/4 3/4 29 1/2 58

Note: All units operate at 90psi


WMH550035
$1,496.00 $1,057.29
"PB-30-1, 30-lb. Paving Breaker, 1""x4-1/4"" Bushing +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States"

WMH550075
$1,745.00 $1,280.80
"JPB-60-1-1/8, 60-lb. Paving Breaker, 1-1/8""x6"" Bushing +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""

WMH550076
$1,745.00 $1,280.80
"JPB-60-1-1/4, 60-lb. Paving Breaker, 1-1/4""x6"" Bushing +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""

WMH550077
$2,000.00 $1,420.00
"JPB-90-1-1/8, 90-lb. Paving Breaker, 1-1/8""x6"" Bushing +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""

WMH550078
$2,000.00 $1,420.00
"JPB-90-1-1/4, 90-lb. Paving Breaker, 1-1/4""x6"" Bushing +++> FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""

WMH556634
$1,036.00 $633.25
"JET-2T, Floor Model Backfill Tamper +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States"


WMH550031
$182.00 $160.00
"M-30, Muffler, fits PB-30, CD-30 & TD-30 +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States"


WMH550032
$227.00 $188.63
"0-30, Inline Oiler, fits PB, CD, TD & RD Model Contractor Tools +++> FREE GROUND UPS On This Item to ANY Location Within the Lower 48 States"
