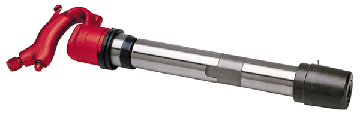

JET Rivet Busters

RB-90, RB-1, RB-90D AND RB-91D

  • Hard hitting, powerful hammers for cutting off bolt and rivet heads

  • May be used for heavy-duty chipping and nail driving applications

  • Come equipped with Arrow™ retainer, bushings and retainer springs

  • RB-90 and RB-90D uses standard 1" rivet buster tooling

  • RB-91 and 91D uses jumbo 1 1/8" rivet buster tooling

  • RB-90 and 91 have open handle design with outside trigger

  • RB-90D and 91D have unique "D" handle design with inside trigger

RB-110 AND RB-110D

  • Boyer type valve and 11" stroke
    deliver extra power for tough jobs

  • Hard hitting, powerful hammer is excellent for medium to heavy concrete demolition, cutting large bolts and rivets as well as other cutting and chipping operations

  • Come equipped with Arrow™ retainer, bushings and retainer springs

  • Uses jumbo 1 1/8" rivet buster tooling

  • RB-110 has open handle design with outside trigger

  • RB-110D has unique "D" handle design with inside trigger

Optional Accessories: Retainers, upper and lower sleeves, bumpers and retainer spring replacements

Specifications
Stock No Model No Tooling Size
(in)		 Rivet Size (in) Stroke Size (in) Bore Size (in) Blows Per Min Air Consump.
(cfm)		 Air Inlet (NPT/in) Air Hose (ID/in) Overall Length Net Weight
(lbs
550095K RB-90 1 1 1/4 9 1 1/16 900 43 3/8 1/2 20-1/4 23
550094K RB-91 1 1/8 1 1/4 9 1 1/16 900 43 3/8 1/2 20-1/4 23
550092K RB-90D 1 1 1/4 9 1 1/16 900 43 3/8 1/2 20-1/4 24
550093K RB-91D 1 1/8 1 1/4 9 1 1/16 900 43 3/8 1/2 20-1/4 24

Note: All Units Operate at 90 psi

WMH550095K
$1,767.00 $1,263.60
"RB-90, 1"" Shank Rivet Buster, 9"" Stroke (WEIGHT = 25 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

WMH550094K
$1,767.00 $1,263.60
"RB-91, 1-1/8"" Shank Rivet Buster, 9"" Stroke (WEIGHT = 25 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

WMH550092K
$1,767.00 $1,263.60
"RB-90D, 1"" Shank Rivet Buster, 9"" Stroke, D-Handle (WEIGHT = 25 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "

WMH550093K
$1,767.00 $1,263.60
"RB-91D, 1-1/8"" Shank Rivet Buster, 9"" Stroke, D-Handle (WEIGHT = 25 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "


WMH550097
$1,989.00 $1,422.20
"RB-110, 1-1/8"" Shank Rivet Buster, 11"" Stroke (WEIGHT = 35 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "


WMH550100
$1,989.00 $1,422.20
"RB-110D, 1-1/8"" Shank Rivet Buster, 11"" Stroke, D-Handle (WEIGHT = 35 lbs ) :::: Please See Shipping Chart at Checkout for Freight or Add to any FREE FREIGHT WMH item for Free Freight on the order. "


WMH551190
$105.36 $89.60
"190-2.400, Standard Retainer, 1"" Steel, Fits RB-90(D) >>>>> FREE Ground UPS anywhere in the lower 48 States."


WMH551502
$21.60 $18.00
"1502, Upper Sleeve for 190-2.400 Retainer, 1"" Steel >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "


WMH551504
$25.20 $21.00
"1504, Lower Sleeve for 190-2.400 Retainer, 1"" Steel >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "


WMH551505
$7.20 $6.00
"1505, Rubber Bumper for 190-2.400 Retainer, 1"" Steel >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "


WMH552101
$23.10 $19.25
"2101, Upper Sleeve for 2190 Retainers, 1-1/8"" Steel >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "


WMH552103
$29.40 $24.50
"2103, Lower Sleeve for 2190 Retainers, 1-1/8"" Steel >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "


WMH552104
$10.80 $9.00
"2104, Rubber Bumper for 2190 Retainers, 1-1/8"" Steel >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "


WMH552191
$132.42 $112.60
"2190-2.565, Jumbo Retainer, 1-1/8"" Steel, Fits RB-110(D) >>>>> FREE Ground UPS anywhere in the lower 48 States."


WMH550098
$46.20 $38.50
"RB-15, Rivet Buster Retainer Springs, 15 pcs. >>>>> See UPS Chart At Check Out for Freight Rate or ADD to a WMH FREE FREIGHT Item for Free Freight On The Order. "
