CST/berger

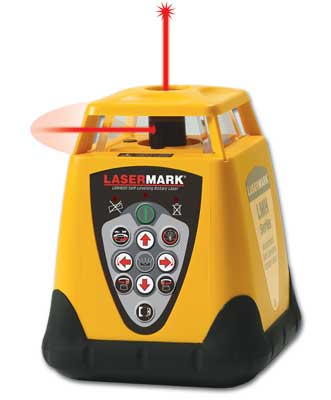

LMH600
Horizontal/Vertical Dual-Beam, Dual-Slope Rotary Laser,
Electronic Self-Leveling
Self-Leveling
in Horizontal, Vertical, and Plumb!
The LMH600 is full of features
including dual slope function allowing specialized site
preparations such as road grading, airport jobs, grading and
paving, irrigation, trenching, landfills, slopes and
embankments, and pipe laying. Dual beam offers vertical
plumb and variable rotation speed for interior and exterior
use. |
|
Technical Specifications |
|
Laser Diode: |
635nm |
|
Accuracy– Horizontal: |
± 1/8" @ 100' (3mm @
30m) |
|
Accuracy– Vertical: |
± 1/8" @ 100' (3mm @
30m) |
|
Range: |
Up to 2000' (610m)
Diameter with Detector |
|
Leveling Type: |
Fully electronic
Servo motor-driven horizontal and vertical
self-leveling, ±5º |
|
Grade/Slope: |
Dual Slope up to 10% |
|
Environment: |
Water and dust proof,
IP54 |
|
Power: |
Four (4) "D" Cell
Alkaline batteries included |
|
Warranty:
|
2 yr. |
|
- One Person Leveling,
Plumbing, and Alignment
- Dual Beam; Horizontal and
Vertical Plumb
- Scanning Feature: Preset
Angles of 10º, 45º, 90º, and 180º to Increase Visibility
- Auto Beam Positioning Button
Positions the Laser Dot in Plumb Down Position (Vertical
Mode) for Vertical Laydown Set-ups
- Indoor and Outdoor Use
- Includes Remote Control
CST/berger LMH600
Packages
Includes 4- "D" cell Alkaline batteries,
instruction manual |
|
|
