Features
-
Infinitely variable speed
-
Blade welder and grinder are front mounted for quick,
accurate blade repair and installation
-
Replaceable rubber tires
-
Brush for cleaning lower drive wheel
-
Maintenance-free air pump provides air to remove chips from
the point of cut
-
Hand wheel controlled speeds
-
Adjustable saw blade guides
-
Machine work light
-
Change speeds while the machine is in operation w/o stopping
and w
|
Specifications |
|

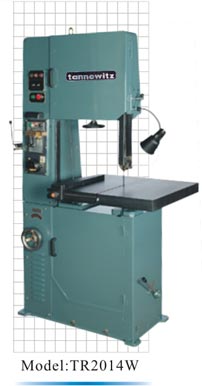

MODEL |
TR2014/TR2014W |
|
Throat depth: |
20" |
|
Work height: |
14 1/8" |
|
Blade width: |
1/8-1" |
|
Blade length: |
160 1/4" |
|
Bandwheel dimensions: |
20 1/2" |
|
Bandwheels number: |
2 |
|
Wheel tires: |
Replaceable rubber tire |
|
Blade guides: |
Tool steel insert w/wear pin |
|
Table type: |
Fixed |
|
Main table size: |
29 1/8X26 3/4" |
|
Auxiliary table size: |
NA |
|
Table tilt: |
15o F,B,L,R |
|
Table height: |
39 3/8" |
|
Blade motor drive: |
2HP 3PH |
|
Electric controls: |
Magnetic starter w/115V |
|
Blade speeds: |
80-1500 FPM |
|
Transmission: |
4-speed totally enclosed |
|
Blade welder, grinder, shear |
1" Capacity standard |
|
Dimension (LXWXH) |
47 5/8X28 3/4X80" |
|
Net weight: |
1320 lbs |
|
