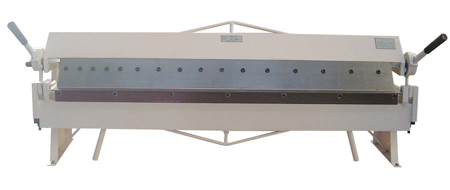

MMX BB-4816 Manual Box & Pan Brake

Standard Features
  • ISO 9002 Certified
  • Angle set-up rod for repeat bend
  • Large 1-1/2" beam opening capacity, manual adjustment
  • 5/8" manual beam adjustment (front & back)
  • Standard 2", 3", and 4" wide fingers
  • All steel heavy body construction with extra heavy tie rod fro minimum deflection
  • One year warranty on parts
Optional Equipment
  • Deluxe stand for BB-4816



Specifications
Model BB-4816
Bending capacity in mild steel 16gauge
Max. depth of box  3”
Bending length capacity 4’
Bending angle , degree 0-135
Beam adjustment, front and back 5/8”
Beam opening 1-1/2”
Net weight, LBS 365 LBS
Dimensions, inch  62x20x26”

MMXBB-4816
$779.95
"48"" x 16 Ga BOX & PAN BRAKE, BENCH TYPE ::::: FREE FREIGHT to MOST Locations Within the Lower 48 States. "

MMXBB-4816-ST
$199.95
STAND FOR BB-4816 ::::: FREE FREIGHT to MOST Locations Within the Lower 48 States.
