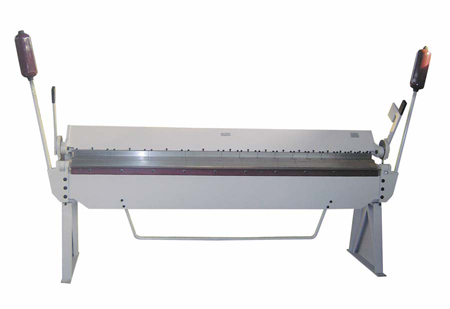

MMX BB-812-6HD & BB-1014-6HD Manual Box & Pan Brake

Standard Features
  • ISO 90002 Certified
  • Large 1 9/16" beam opening, adjustable
  • 1" beam adjustment (front & back)
  • Standard 2", 3", 4" 5" & 6" wide fingers
  • Stop rods for repeat bends
  • All steel heavy duty body construction with extra heavy tie rod for minimum deflection
  • One year warranty on parts


SPECIFICATIONS
Models BB-812-6HD BB-1014-6HD
Bending Capacity Bending Length 96" 120"
Mild Steel 12GA 14GA
Stainless Steel 16GA 18GA
Bending Angle 0-135°
Beam Adjustment 1"
Min. Reverse Bend 1/16"
Max. Box Depth 5 1/2"
Manual Clamping Standard
Beam Opening 1 9/16"
Packing Size 123" x 34" x 46" 146" x 34" x 44"
Net Weight 3,600lbs 4,000lbs

MMXBB-812-6HD
$5,550.00
8' x 12 Ga. Heavy Duty Box & Pan Brake ::::: FREE FREIGHT to MOST Locations Within the Lower 48 States.

MMXBB-1014-6HD
$6,350.00
10' x 14 Ga. Heavy Duty Box & Pan Brake ::::: FREE FREIGHT to MOST Locations Within the Lower 48 States.
