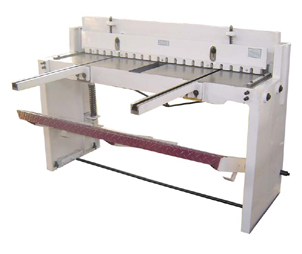

MMX 52" Foot Shear

Standard Features
  • ISO 9002 Certified
  • Heavy Duty cast iron table
  • Heavy welded all steel construction for maximum ridgidity
  • Safety full length finger guard
  • Spring loaded hold down
  • 24" manual back gauge
  • (2) 14" squaring arms
  • (2) 24" front supports
  • High grade upper/bottom blades
  • One year warranty on parts
  • High grade, high carbon/chrome 2-edge upper blade and 4-edge bottom
    blade


Optional Equipment
  • Extra set of blades, (1) upper and (1) bottom
Specifications

Model

 FS-5216
Cutting capacity: mild steel only 52” x 16 Ga.
Rake angle 1.5 degree
Front support length 24"
Manual back gauge 24”
Net weight  1,180 LBS
Machine dimensions, LxWxH 70”x33”x52"

MMXFS-5216
$1,500.00 $1,350.00
52" x 16 Ga. FOOT SHEAR, CAST-IRON BODY ::::: FREE TRUCK SHIPPING - To Any Commercial Address (Home Businesses are NOT Considered a Commercial Address) **Note: Residential, Lift Gate and/or Redelivery Charges are NOT Included!"""

MMXFS5216-BL
$225.00
Extra Blade Set For FS-5216 ::::: FREE FREIGHT to MOST Locations Within the Lower 48 States.
