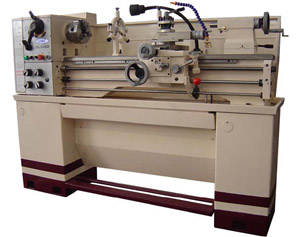

MMXML 1440BGF Lathe

Features

• ISO 9002 certified

• Full Geared Head precision Engine Lathe w/foot brake

• Heavy duty main motor- 3HP, 220V, 1Ph (3Ph Optional)

• Spindle bore 1 1/2"

• Heavy duty spindle D1-4

• Heavy duty guideway width 7 1/2"

• 8 spindle speeds from 70-2000 rpm, speeds: 70/115/190/300/460/755/1255/2000 rpm

• 38 kinds of inch threads, and 28 kinds of metric threads

• Spindle is balanced, hardened and precision ground

• All gears and shafts are hardened and precision ground

• Guideways induction hardened and precision ground

• Automatic lubrication system in headstock and feed box

• One year warranty for parts

Standard Equipment for Model MMXML-1440BGF Heavy Duty Lathe

• 6" 3-jaw chuck with set reversible jaws

• 8" 4-jaw chuck with set reversible jaws

• 10" face plate

• 3 3/4" large steady rest

• 2" follow rest

• Coolant System

• Removable gap

• Foot brake

• Halogen work light

• 4-way tools post

• Full length splash guard

• (2) dead centers and (1) reducing sleeve

• Thread chasing dial

• Tool box

Optional Equipment for MMXML-1440BGF Heavy Duty Lathe

• 10" drive plate #DPD410

• Micro carriage stop #MCS1440

• DRO for #1440, NEWALL #C80 #NW840, 2axis, (factory installed, no charge)

• DRO, Mitutoyo #KA, 2 axis, (factory installed, no charge)

• 5-C Hand lever type collet closer, #5C (factory installed, no charge)

• 33pc 5C collet set, from 1/16" to 1 1/16" by 32ndth, #900-0014

• Taper turning attachment #TA-GML1440BFG (factory installed, no charge)

• 6pc ALORIS type quick change toolpost #900-0051-100 (wedge)

• Live center MT3 #900-0050-03

• 1/2" drill chuck #700-0102

• 1/2" drill chick arbor #700-0153

• Lathe package #1 includes- 5pc indexable carbide turning set #2003-0003, (5) pcs. 3/8" carbide inserts #2003-0014, 1/2"drill chuck #700-0102, chuck arbor #700-0153 and 29pc Titanium drill bit set #5000-0001T
