The MC250 is a smaller
version of the MC family of extruded curbing machines and benefits from
Miller’s 40-plus years experience in manufacturing extruded curbing machines.
The MC250 can be used in a
variety of applications that require the placement of durable concrete edging
such as golf courses, parks and recreation areas, water retention areas, garden
borders, and miniature putting greens.
In addition to placing
decorative landscape curbing, the MC250 is capable of placing commercial
tack-down curbing ranging from low profile rollover curbs to standard parking
lot curbing.
The auger provides a
constant flow of mix under pressure through a compaction tube into the form.
This process produces a finished curb that has greater strength than curb placed
by a plunger machine.
The MC250 has a higher
production rate of up to 12 feet a minute when using a mix with 3/8"
aggregate.
The MC250 includes
numerous safety and operation features found on the MC550 family of commercial
extrusion machines and is backed by Miller’s exclusive 6-year warranty
Features
- Console-mounted
emergency stop switch, hour/service metera nd level (Figure 1)
- Lifting bail makes it
easy to lift the machine (Figure 1)
- Multi-position steering
handle can be used on either the left or right side of the machine (Figure
2)
- Large hopper with
anti-bridging design improves machine productivity
- Engine guard keeps the
concrete off the engine (Figure 3)
- Chain guard protects
the chain drive assembly from damage and the operator from harm (Figure 3)
- Removable compaction
tube is easily replaced when worn (Figure 4)

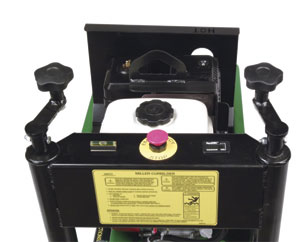

1, Console and
lifting bail
|

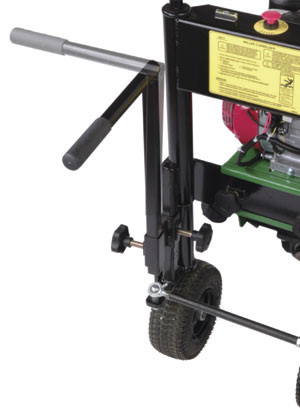

2. Multi-position
steering handle |
3. Instruction
manual and chain guard
|
| |
4. Lifting handle
and compaction tube
|
|
|
Specifications |
| Engine |
4HP Honda |
| Wheels |
(3) 9" x
3-1/2" pneumatic tires |
| Drive |
Automatic
centrifugal clutch to enclosed gear reducer, final drive chain and
sprocket |
| Hopper Capacity |
0.86 cubic feet |
| Steering |
Tie rod;
multi-position adjustable steering handle |
| Height |
36-1/4"
(Operating height) |
| Length |
40-3/4" with
form |
| Width |
19-1/2" |
| Weight |
209 lb |
|
