A smaller version of the
MB16 power buggy, the MB11 incorporates a number of the same unique design
features found in the MB16. These features result in an easy to service, low
maintenance power buggy that is built to last.
The MB11 is powered by an
8hp engine directly coupled to a fan-cooled variable-speed hydrostatic pump.
This arrangement provides speed or power depending on jobsite conditions and
needs. Additionally, the full hydrostatic design provides improved dynamic
braking.
The main frame is a welded
boxframe that provides unmatched strength and structural integrity. A removable
shroud protects the drive components and engine from concrete buildup. The
vented shroud and “pull through” ventilation system assures safe hydraulic
temperatures for longer component life.
All hydraulic hoses are
enclosed within the main frame for easy access and protection. Handling is
simplified by convenient lifting points and frame notch-outs for lifting with a
fork truck.
The rear caster assembly
consists of both roller bearing and ball bearing assemblies. This dual bearing
design provides greater load carrying capacity than casters using only ball
bearings
Features
- Full hydrostatic drive
- Enclosed, vented
console (Figure 1)
- Dual front and rear
wheels
- Hydraulic dump (power
up and down) with console-mounted control (Figure 1)
- Console-mounted engine
stop switch and directional control
- Foot-activated
positive-lock parking brake with quick release
- SuperFlex® filled
tires
- Backed by Miller’s
exclusive 6-year warranty
- Tires filled with
SuperFlex®, a patented liquid polyurethane that forms a rubber core,
eliminates flats
- Powder coated removable
console provides a long-lasting, durable finish, is easily cleaned and
protects drive system components (Figure 1)
- Dual rear caster wheels
with taper roller bearing and ball bearing provide greater stability and
load carrying capacity
- Hydraulic hoses are
located within the main frame for ease of access and protection *Figure 2)
- Heavy duty components
for longer life

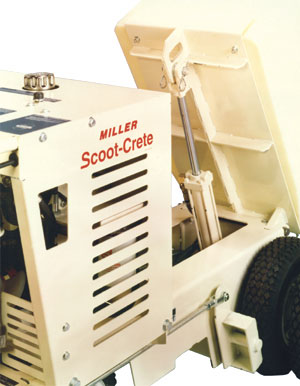

1. Console,
Lifting Points and Parking Brake |

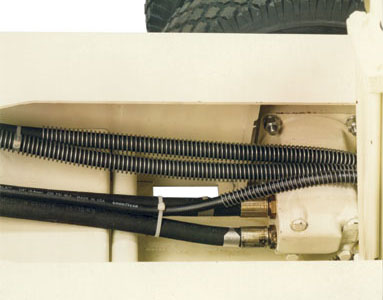

2.Hose Raceway |
|
Specifications |
| Payload |
1650 lb |
| Bucket
Capacity |
11 cu ft |
| Drive
system |
Variable
speed hydrostatic and (2) individual hydraulic wheel motors; 12 qt.
hydraulic reservoir |
| Parking
Brake |
Friction
pad on drive wheels; foot operated |
| Top
speed |
3.5 mph |
| Drive
tires |
(4) 4.80
x 8 |
| Steering
Tires |
(2) 4.10
x 6 |
| Engine |
8HP Honda |
| Controls |
Hand
operated travel speed, directional control and dump |
| Height |
45" |
| Length |
86-1/2"
with poly bucket; 80-1/2" with steel bucket |
| Width |
41"
(28" with outside drive tires removed) |
| Wheelbase |
37.5" |
| Fuel
Capacity |
1.5 gal. |
| Weight |
935
lb. |
|
