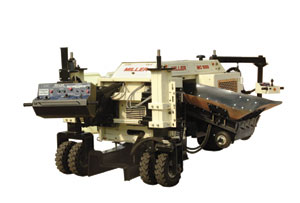

Miller’s MC1050 Slipform
Curb & Gutter machine places concrete curbing and sidewalks ranging from
8" to 48" wide and 5" to 18" tall. With curbing speeds up to
12fpm the MC1050 is the ideal machine for commercial and residential curbing
jobs.
Miller’s modular frame
design makes form changes a breeze and minimizes down time. With four available
slide mounted hoppers the MC1050 can straddle forms up to 4' wide or offset to
18" left or right for placement next to obstacles. These features along
with quick clamp vibrator mounts allow set up changes in less than 1 hour.
The hopper is fed by a
high capacity conveyor located left or right side for easy access for the
concrete mixer and can be quickly removed for cleaning. The hydrostatic drive
and vibrators provide the operator complete control over the machine operation
to produce a consistent and durable free-standing concrete product.
The front and rear
boom-mounted control panels offer a wide selection of operator positions. This
allows the operator to move the controls and keep adjustments at the
operator’s fingertips from any position around the machine.
The MC1050 comes pre-wired
to accept several automatic control options including laser, string line wand,
or slope module grade controls and string line wand type automatic steering.
Fully adjustable sensor mounts can be attached on several positions on both
sides of the machine to increase set up versatility. With the optional laser
grade control system, receiver masts are located at each wheel position and can
hold elevation within ±1/8".
The MC1050's compact size
allows it to be easily carried on a standard tandem axle trailer. Collapsible
rear wheels allow the machine width to be reduced to 52" wide. Tie-down and
lifting points are conveniently located at each corner.
Features
- Fully adjustable
undercarriage
- Modular frame design
allows for left, right or straddle placement of the form (Figure 1)
- Dual range hydrostatic
drive front and rear wheels with free-wheeling for tight radius
- Front and rear
boom-mounted control panels (Figure 2)
- Pre-wired for automatic
grade and steering control (Figure 3)
- Kubota 35hp turbo
diesel
- Meets CE standards
- Easily transported by
tandem axle trailer
- Modular frame design
allows for left, right or straddle placement of the form
- Laser grade control
package available
- Backed by Miller’s
exclusive 6-year warranty
- Operator friendly

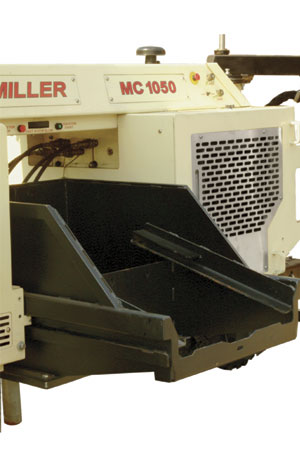

1. Modular frame
design |

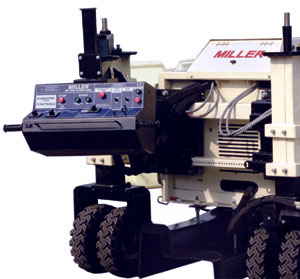

2. Boom-mounted rear
control panel |

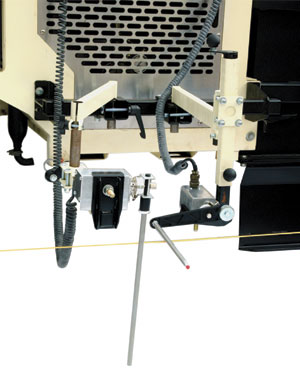

3. Optional steering
and grade control wands |
|
Specifications |
| Engine |
Kubota
35HP turbo diesel |
| Wheels |
(6)
5.70" x 8" SuperFlex® filled |
| Vibrators |
Up to
10,000 vp, vibrators (2) 2-3/8" diameter Quick Disconnect |
| Drive |
Hydrostatic
front and rear drive with free wheeling |
| Brake |
Failsafe
parking brake |
| Steering |
Hydraulic
controlled steering |
| Height |
71"
(shipping height) |
| Length |
138"
without form |
| Width |
52"
(expands to 81") |
| Weight |
4,800
pound with conveyor, transition and mold |
| Travel
Speed |
Low
range: 0-25 fpm, High range: 0-90 fpm |
| Hydraulic
Capacity |
Oil, 10
gallons |
| Fuel
Capacity |
6 gallons |
| Optional Equipment |
| Additional vibrator
circuit (2) standard |
| Laser grade receivers |
| Wand steering sensor |
| Wand grade
sensors |
| Sonic or slope grade
modules |
| Automatic hydraulic
bleed-out plates |
| Full instrumentation
gauge pack including engine oil pressure and temperature, hydraulic oil
temperature and three pressure circuits |
Call 1-800-458-3687 For
Special Pricing |
