The MC350 Landscape
Curbilder‘ is the newest curber in Miller Spreader’s Curbilder‘ family of
curbing machines. Like the MC250, the MC350 Landscape machine is designed to
place decorative landscape curbing and smaller commercial curbing.
A 6” reciprocating
plunger powered by a 3HP Honda engine pushes the curb mix from the hopper into
the curb form. The plunger assembly components are machined to tight and
exacting tolerances for years of trouble free operation. Since the hopper is
open on the bottom, dips and valleys in the base are filled in so site
preparation doesn’t need to be as accurate as with an auger machine.
Curb forms are reversible
within the plunger housing so either left or right hand curbing can be placed
with the same form. The design of the MC350 allows for “zero” clearance on
the right side of the machine when placing curb. A drop pointer is standard to
ensure straight and level curbing.
A level indicator,
emergency stop switch, hour meter, and operator’s manual tube are located on
the console. The spring tensioned height adjustment handles won’t vibrate so
the height adjustment stays constant. Proper tensioning of the drive belt is a
snap with the hinged engine mount and adjusting bolt.
As with all Miller
products, the MC350 Landscape Curbilder‘ is backed by Miller’s exclusive
6-year warranty
Features
- 6" housing assembly with ram
- Console-mounted combination hour meter, tachometer and service meter
(Figure 1)
- Engine guard with lifting bail (Figure 2)
- Indicator level
- Removeable transport wheel and lifting handle (Figure 3)
- Adjustable steering handle
- .63 cu ft hopper with anti-bridging design
- 3hp Honda engine
- Reversible curbforms and "Zero" clearance to obstructions (with
pointer removed)(Figure 4)
- Belt tensioning mechanism (Figure 5)
1, Console
|

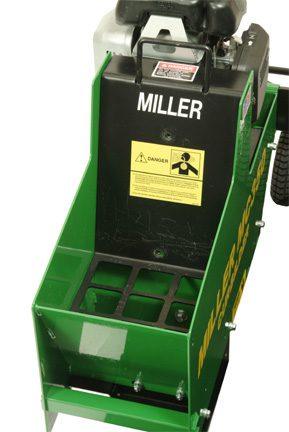

2.Engine guard with
lifting bail
|
3.Removeable
transport wheel and lifting handle
|
|
4."Zero"
Clearance to obstructions and reversible curbform
|
|
5. Belt tensioning
mechanism
|
|
Specifications |
| Engine |
3HP Honda |
| Wheels |
(3) 9" x
3-1/2" pneumatic tires |
| Drive |
Automatic
centrifugal clutch to enclosed gear reducer, final drive chain and
sprocket |
| Hopper Capacity |
0.63 cubic feet |
| Steering |
Tie rod;
multi-position adjustable steering handle |
| Height |
36-1/4"
(Operating height) |
| Length |
45" with form |
| Width |
19-1/2" |
| Weight |
190 lb |
|
