Miller MTB16 Track Buggy

Go where regular power buggies won’t go with Miller’s new Half-Track Power Buggy. No longer limited to hard compacted surfaces, the Half-Track can handle a variety of jobsite conditions including mud, sandy and loamy soil or wet grass.

The Half-Track features an optional four foot stake body bed that easily converts the power buggy to a tracked utility vehicle. With this conversion, the Half-Track can be used to transport a variety of materials, such as concrete forms, brick, block, sod and shrubbery around the jobsite.

The Half-Track comes standard with high torque hydraulic wheel motors that have twice the load rating of a standard motor and provide 32% more torque.

With the combination of the high torque drive motors and surface area provided by the tracks, the Half-Track climbs hills that conventional buggies can’t handle.

Miller’s Half-Track power buggies provide unmatched strength and structural integrity, excellent durability, and ideal weight distribution. With this new product, Miller redefines standards by which power buggies are judged.

Features

• Optional stake bed provides maximum flexiblity (Figure 1)
• External hydraulic system oil cooler
• Frame constructed of solid 2" steel plate with integral idler wheel receiver (Figure 2)
• High torque hydraulic wheel motors provide 32% more torque than standard drive motors
• High torque hydraulic drive motors (Figure 3)
• Hydraulic dump (power up and down) with console- and foot-operated control
• Console-mounted engine stop switch and directional control
• Foot-activated semi-enclosed band brakes with positive-lock parking brake
• Only power buggy with removable tracks
• External oil cooler assures safe hydraulic temperatures in all operating conditions (Figure 4)
• Solid 2½ x 9½ steel frame provides unmatched strength and durability
• Backed by Miller’s exclusive 6-year warranty
• Tires filled with SuperFlex®, a patented liquid polyurethane that forms a rubber core, eliminating flats
• Powder coated removable console provides a long-lasting, durable finish, is easily cleaned and protects drive system components

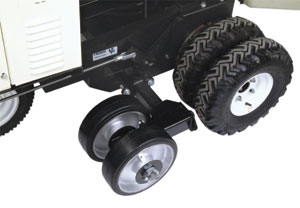

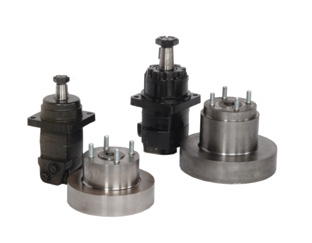

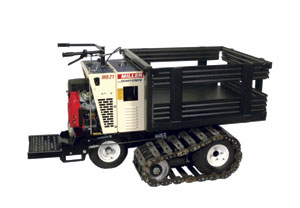

1. MTB with optional track kit and stake bed	2. Idler wheel assembly installed	3. Larger drive motors and brake drums (right) than with the standard MB16.

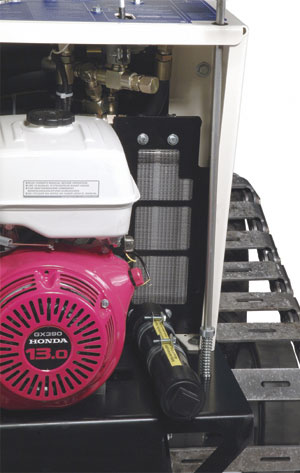

	4. External oil cooler and instruction manual tube
