Features
-
ISO 9001 certified
-

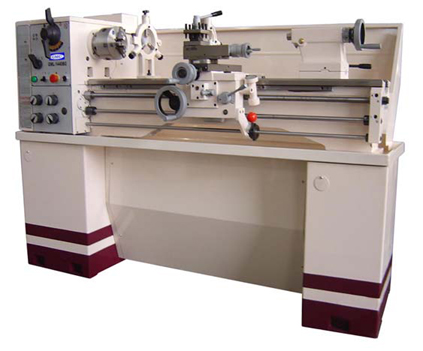

Geared-head precision Bench Lathe
-
Fully enclosed precision gearbox
-
Heavy Duty main motor 3HP, 220V, 1 phase
-
Spindle bore 1 1/2”
-
Heavy Duty spindle D1-4
-
Heavy Duty guideway width 7 1/2”
-
8 spindle speeds from 70-2,000 rpm, speeds: 70/ 115/ 190/
300/ 460/ 755/ 1,255/
2,000 rpm
-
38 kinds of inch threads, and 28 kinds of metric threads
-
Spindle is balanced, hardened and precision ground
-
All gears and shafts are precision ground
-
Guideways induction hardened and precision ground
-
Automatic lubrication system in headstock and feed box
-
One year warranty for parts
|
|
Standard Equipment
-
(2) free
metal stands
-
6” 3-jsw chuck with set reversible jaws
-
8” 4-jaw chuck with set reversible jaws
-
10” Face plate
-
3 ¾” large steady rest
-
2” follow rest
-
Removeable gap
-
4-way tools post
-
Full length splash guard
-
(2) dead centers and (1) reducing sleeve
-
Thread chasing dial
-
Tool box
Optional Equipment
-
Work light # WKL , 110V
-
Coolant System, floor type with 1 Ga. Tank
-
10” Drive Plate# DPD410
-
Micro Carriage Stop#MCS1440
-
DRO for # 1440, NEWALL # C80 #NW840, 2 axis, free install
-
DRO, Mitutoyo # KA , 2 axis , free install
-
5-C Hand lever type collet closer, # 5C,free install
-
33 pc 5C collet set, from 1/16 to 1-1/16” by 32ndth, #
900-0014
-
Taper turning attachment # TA-GML1440, free installation
-
6pc ALORIS type quick change toolpost# 900-0051-100 (wedge)
-
Live Center MT3 # 900-0050-03
-
½” drill chuck # 700-0102
-
½” drill chuck arbor # 700-0153
-
Lathe package # 1, incl 5pc indexable carbide turning set#
2003-0004, $85.00
½ drill chuck # 700-0102, Chuck arbor # 700-0153 and 29pc Titanium
drill bit set #5000-0001T
|
|
Specifications |
| Model |
MMXML-1440BG |
| Max. swing over bed |
14” |
| Max. length of workpiece / Max.
length of cutting |
40” / 34” |
| Max. swing over cross slide |
8-1/4” |
| Max. Swing in gap |
19-1/4” |
| Width of Bed |
7-1/2” |
| Effective length in gap to spindle |
6-1/2” |
| Effective length in gap to chuck
jaws |
3-5/8” |
| Spindle bore |
1 ½” , D1-4 |
| Taper of spindle center |
M.T.# 5 (MT5/MT3) |
| Spindle speeds |
65-2,000 rpm / 8 steps |
| Longitudinal feeds |
0.002-0.03 IPR, 36 kinds |
| Cross feeds |
0.0008-0.010 IPR, 36 kinds |
| Inch threads |
4-56 TPI, 34 kinds |
| Metric threads |
0.4-7.0 mm , 26 kinds |
| Diametral Pitch threads |
8-112 DP, 36 kinds |
| Module threads |
0.2-3mm, 26 kinds |
| Max. travel of top slide |
4-1/4” |
| Max. travel of cross slide |
7-1/4” |
| Spindle speeds, 8 steps |
70, 115, 190, 300, 460, 755, 1255,
2000 rpm |
| Diameter of tailstock quill |
1-1/4” |
| Max. travel of tailstock quill |
4” |
| Taper of tailsotck quill center |
M.T. # 3 |
| Main motor |
3 HP, 220V, 1 phase |
| Net weight, approx. |
1,360 LBS |
| Overall dimensions, LxWxH |
68” x 32” x 57” |
|
|
|
