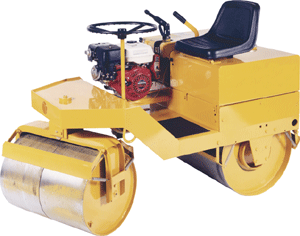

R2000H Roller
Use the R2000H for small asphalt paving jobs such as driveways,
walkways, bike paths, small parking lots, and for patching
Features
-
Compacts by weight only (also known as static compaction)
-
Can be used for granular sub-base soil compaction in
preparation of asphalt paving
-
Lifts for soil estimated to be approximately 4-6" depth
-
Asphalt lifts of 1-2" depth
-
Smallest ride-on roller we offer
|
Specifications |
| Overall Width In. (mm) |
37 (929) |
| Overall Height In. (mm) |
(1219) |
| Overall Length In. (mm)
|
73 (1854) |
| Weight, Front-dry Lbs.
(kg) |
602 (273) |
| Weight, Front-wet Lbs.
(kg) |
851 (386) |
| Weight, Rear-dry Lbs.
(kg) |
780 (354) |
| Weight, Rear-wet Lbs.
(kg) |
1384 (628) |
| Weight, Total-dry Lbs.
(kg) |
1382 (627) |
| Weight, Total-wet Lbs.
(kg) |
2235 (1014) |
| Dia., Front Roll In.
(mm) |
20 (502) |
| Width, Front Roll In.
(mm) |
28 (703 (split)
|
| Dia., Rear Roll In. (mm) |
24 (602) |
| Width, Rear Roll In.
(mm) |
32 (803) |
| Side Clearance, left
side In. (mm) |
1.75 (44.5) |
| Turning Radius, inside
In. (mm) |
126 (3200) |
| Engine HP (kW) |
8.0 (6.0) |
| Fuel Type |
Gasoline |
| Water Tank Capacity gal
(l) |
21 (79.5) |
| Gradeability % (°) |
26 (15) |
| Speed mph (kph) |
(0-9.0) |
| Fuel Capacity gal (l) |
1.5 (5.7 |
| Fuel Consumption gal/hr
|
0.35 |
|
