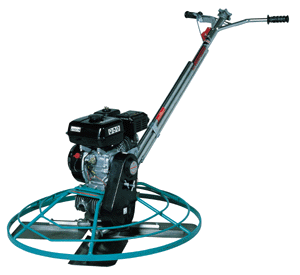

MultiQuip 36" Standard Trowels

Our popular mid-size trowel for the professional finisher. Reliability and performance are trademarks of this industry proven trowel.

J36H55, J36H90, J36H90H, J36R90, J36R90H

  • A 36-inch (915mm) ring diameter

  • 1-year warranty plus complete product service support for trowel's life

  • Fuly enclosed belt guard

  • Access panel provides quick access to trowel arms and blades.

  • Includes lifting eye as standard equipment

  • Optimal balance for smooth finishing



 J36R60
  • Guard ring access panel simplifies service and reduces time spent changing blades
  • Integral lifting bale simplifies placement on the job stie
  • 1-year warranty plus complete product service support for trowel's life
  • Fueled by a 6.0 HP Robin gasoline engine
  • Centrifugal clutch
  • Accessories include grinding attachments, a lifting bale and float pans



 J42E
  • A 36-inch (91.5 cm) ring diameter
  • Fixed rotor speed of 93 RPM
  • Electric 2-hp, 110/220V 60Hz single-phase motor
  • Include Standard handle which affords operator smooth pitch adjustment
 J42E50
  • A 36-inch (915 mm) ring diameter
  • Fixeed rotor speed of 77 RPM
  • Electric 2-hp, 115/230V 50Hz single-phase motor
  • Includes Standard handle which affords the operator smooth blade pitch adjustment
UNIT SPECIFICATIONS
Clutch Type Centrifugal
No. of Blades 4
Ring Diameter 36 in
Rotor Speed 93 RPM
77 RPM
60-130 RPM
60-130RPM
90-155 RPM
Handle Options STHAJB
QPHAJB
DIMENSIONS & WEIGHTS
Overall Length* 70 in
Overall Width 36 in
Overall Height* 41 in
Operating Weight** 150 lb
Shipping Weight** 190 lb

* Approximate dimensions include Standard Handle (Sold seperately).
**Weight does not include handle.

Handles & Accessories
(Please Choose Desired Handle Below)

Model

Description

STHA-JB

Standard Handle (option)

QPHA-JB

Quick Pitch Handle (option)

1479

Lifting bale 8hp Robin, Honda

C-844

Combo Blade 8 x 14-in
HANDLES FOR TROWELS ON THIS PAGE
MUST BE PURCHASED SEPARATELY
SELECT DESIRED HANDLE BELOW


Concrete Trowel Accessories

M-Trowel_icon.gif MULJ42E
$2,895.00 $2,316.00
"115/230V, 93 Max. RPM (includes standard handle) J-Series Trowels, 4-blade 36"" (91cm) (Handles Sold Sepertaly) >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"


MULJ36H55
$2,130.00 $1,747.62
"Whiteman Power Trowels J-Series Trowels, 4-blade 36"" (91cm) 5.5HP Honda, 60-115 rpm - replaces JA45H (New for 2007) -->>>> FREE TRUCK SHIPPING to any commercial address. **NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! "


MULJ36H90
$2,325.00 $1,860.00
"Honda GX270, Low Speed, 130 Max. RPM J-Series Trowels, 4-blade 36"" (91cm) (Handles Sold Sepertaly) >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"


MULJ36H90H
$2,325.00 $1,860.00
"Honda GX270, High Speed, 155 Max. RPM J-Series Trowels, 4-blade 36"" (91cm) (Handles Sold Sepertaly) >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"


MULJ36R60
$2,115.00 $1,692.00
"Robin EX17, 115 Max. RPM J-Series Trowels, 4-blade 36"" (91cm) (Handles Sold Sepertaly) >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"


MULJ36R90
$2,220.00 $1,776.00
"Robin EX27, Low Speed, 130 Max. RPM J-Series Trowels, 4-blade 36"" (91cm) (Handles Sold Sepertaly) >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"


MULJ36R90H
$2,220.00 $1,776.00
"Robin EX27, High Speed, 155 Max. RPM J-Series Trowels, 4-blade 36"" (91cm) (Handles Sold Sepertaly) >>>>> FREE FREIGHT To Any Commercial in the Upper 48 States ***NOTE: Residential, Tailgate or Redelivery Charges NOT INCLUDED! PC-111908"

MULQPHAJB
$485.00 $388.00
"Quick Pitch? handle for M30, J36, B46, JA, BA & HPA Trowels Power Trowel Handles (sold as units add to machine price) >>>> SEE UPS CHART or FREE SHIPPING When Ordered With a Multiquip FREE FREIGHT Item. PC-111908"

MULSTHAJB
$360.00 $288.00
"Standard handle, for M30, J36, B46, JA, BA & HPA Trowels Power Trowel Handles (sold as units add to machine price) >>>> SEE UPS CHART or FREE SHIPPING When Ordered With a Multiquip FREE FREIGHT Item. PC-111908"

MUL1846
$80.00 $65.64
"Whiteman Power Trowels Options & Accessories Lifting bale for all J, M, E Series with Robin EX and Honda engines ===> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"

MULC844
$15.90 $13.52
"Power Trowel Blades '14"" for 36"" WalkBehind & RideOn Trowels Combo, 8"" x 14"" for 36"" units ===> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"
