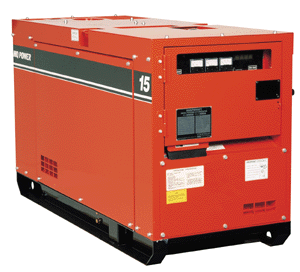

MultiQuip DCA-15SPX3 Generator

DCA-15SPX3

Excellent voltage regulation is one of many outstanding features common to the WhisperWatt line and it is no different here.

The DCA-15PX3 controls power within 1 percent of mean voltage. The unit generates 16.5kW standby output and 15kW prime output. Standard features include a complete power panel, automatic safety shutdown system, brushless generator design, easy maintenance design with direct access to all filters, and an internal fuel tank.

SPECIFICATIONS
Performance Data
Standby Output
 16.5 kW
Prime Output
 15 kW
Generator RPM
 1800 RPMs
Generator Design
 Revolving Field Self-Ventilated Dip-Proof Single Bearing
Voltage Regulation - (No Load to Full Load)
 1.5 %
Power Factor
 1
Armature Connection
 Series
Excitation
 Brushless with AVR
No. Poles
 4 Pole
Frequency
 60 Hz
Available Voltages - Single Phase 120V
 120/240 Volts
Amps - Single Phase 120V
 62.5 (2 Sets) Amps
Amps - Single Phase 240V
 62.5 Amps
Insulation
 Class F
Sound Level dB(A) - Full Load at 23 feet
 63 dB(A)
Power Source
Engine Make / Model
 Kubota V2203
Dimensions
Overall Length
 65 in
Overall Width
 61 in.
Overall Height
 36 in
Approx. Net Wt. Dry
 1277 lbs



Click Here For Product Brochure To Check Out More Features And Specifications

MULDCA15SPX4C
$17,500.00 $12,650.40
"25.5 hp @ (Rated Speed), 36.1 hp (Gross) Kubota diesel Tier IV, 62 dB(A), electric start, 16.4 Gallon Fuel Tank w/ EGS and Idle control (15KW 120/240) :::: Call 800-458-3687 For Freight Pricing"

MULTRLRMP
$1,650.00 $1,336.68
"Accessories for Portable Generators & Welders Hwy Trailer for BLW300 & DAW500 welders, no fuel cell ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)"

MULTRLRMPXF
$2,870.00 $2,325.02
Accessories for Portable Generators & Welders Hwy Trailer ~ same as TRLRMP with 30 gallon fuel cell - all models ++>> CALL FOR 800-458-3687 for a FREIGHT RATE or Add to a Multiquip Equipment Purchase for FREE FREIGHT (PC1909)

MULMQPHEAT
$450.00 $359.91
"Direct Immersion engine pre-heater for DA7000, DCA10, TLG12, DCA15, DCA70 - DCA220 ====> FREE FREIGHT Only When Ordered with Multiquip Equipment, If not see UPS Chart at Check Out!"""

MULRCRGLTR1
$250.00 $176.46
"Racor Filters for DCA 10, 12, 15, 25 >>>Call 800-458-3687 for Freight Rate
