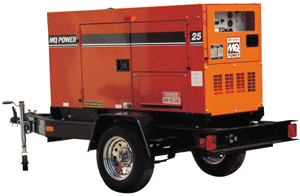

DCA-25SSIU

The WhisperWatt line of portable generators has thrived with a revolving field, self-ventilated, drip-proof, single bearing design.

The DCA-25SSIU sports 27kVA/22kW standby output and 25kVA/20kW prime output. The generator is powered by a 4-cylinder, 31-horsepower Isuzu C240 diesel engine and the unit controls voltage regulation to +/-1 percent no load to full load. Sound level is an impressive 65dBA full load at 23 feet while the generator has a 17-gallon (65 liters) fuel tank.

SPECIFICATIONS
Performance Data
Standby Output	22 kW
Prime Output	20 kW
Generator RPM	1800 RPMs
Generator Design	Revolving Field Self-Ventilated Dip-Proof Single Bearing
Voltage Regulation - (No Load to Full Load)	1 %
Power Factor	0.8
Armature Connection	Star with Neutral / Zigzag
Excitation	Brushless with AVR
No. Poles	4 Pole
Frequency	60 Hz
Available Voltages - 3 Phase	208, 220, 240, 416, 440, 460, 480V Switchable Volts
Available Voltages - Single Phase	120, 127, 139, 240, 254, 277 Switchable Volts
Amps - Single Phase 120V	55.5 (4 Wire) 60x2(Zigzg) Amps
Amps - Single Phase 240V	27.8 (4 Wire) 60 (Zigzg) Amps
Amps - Three Phase 240V	60 Amps
Amps - Three Phase 480V	30 Amps
Insulation	Class F
Sound Level dB(A) - Full Load at 23 feet	67 dB(A)
Power Source
Engine Make / Model	Isuzu C240
Dimensions
Overall Length	77 in
Overall Width	30 in
Overall Height	39 in
Approx. Net Wt. Dry	1543 lbs.
