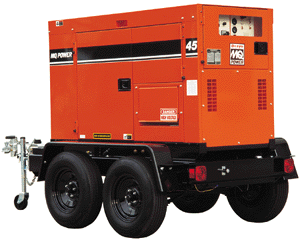

DCA-45SSIU2

The WhisperWatt line is known for excellent voltage regulation and each model continues to meet customer needs.

MQ Power’s DCA-45SSIU2 controls power within +/-1 percent of mean voltage. The unit generates 47kVA/37kW standby output and 45kVA/36kW prime output. Standard features include a complete power panel, automatic safety shutdown system, brushless generator design, easy maintenance design with direct access to all filters, and an internal fuel tank.

SPECIFICATIONS
Performance Data
Standby Output	37 kW
Prime Output	36 kW
Generator RPM	1800 RPMs
Generator Design	Revolving Field Self-Ventilated Dip-Proof Single Bearing
Voltage Regulation - (No Load to Full Load)	1.5 %
Power Factor	0.8
Armature Connection	Star with Neutral / Zigzag
Excitation	Brushless with AVR
No. Poles	4 Pole
Frequency	60 Hz
Available Voltages - 3 Phase	208, 220, 240, 416, 440, 460, 480V Switchable Volts
Available Voltages - Single Phase	120, 127, 139, 240, 254, 277 Switchable Volts
Amps - Single Phase 120V	100 (4 Wire) 108x2 (Zigzg) Amps
Amps - Single Phase 240V	50 (4 Wire) 108 (Zigzg) Amps
Amps - Three Phase 240V	108 Amps
Amps - Three Phase 480V	54 Amps
Insulation	Class F
Sound Level dB(A) - Full Load at 23 feet	66 dB(A)
Power Source
Engine Make / Model	Isuzu 4BG1
Dimensions
Overall Length	79 in
Overall Width	35 in
Overall Height	49 in
Approx. Net Wt. Dry	2403 lbs.
