The Ultra-Silent Series features an upgraded environmental package with an
integrated fuel tank and fluid containment system

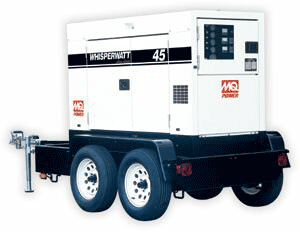

The DCA-45USI generates standby output of 47kVA/37kW and
prime output of 45kVA/36kW. Powered by a 55-horsepower, 4-cylinder Isuzu
BB-4JG1T diesel engine, the DCA-45USI also features improved fuel efficiency and
voltage regulation, and residual value that is unmatched by any other generator.
An integrated fuel tank has a 24-hour run time. In addition, the generator is
offered with a standard electric starting system and improved frequency
regulation to 0.25 percent.
|
Specifications |
| Model/ Cat. No |
DCA-45USI |
| Description |
Isuzu 4BG1 |
| Starting System |
Electric |
| Engine Design |
4-Cycle, Water Cooled, Direct Injection
|
| Displacement |
4329 cc. |
| No. Cylinders |
4 |
| Bore x Stroke |
4.13 x 4.9 in. , 105 x 125 mm |
| Gross Engine Power
Output | 58.3 |
| Horsepower at Rated
Speed | 55.2 HP |
| Fuel Tank Capacity |
26 gal. , 100 L |
| Fuel Consumption - Full
Load | 2.8 gph , 10.7 lph
|
| Fuel Consumption - 3/4
Load | 2.2 gph , 8.2 lph
|
| Fuel Consumption - 1/2
Load | 1.6 gph , 6.2 lph
|
| Fuel Consumption - 1/4
Load | 1.1 gph , 4.2 lph
|
| Coolant Capacity |
5.3 gal. , 20 L |
| Oil Capacity |
3.4 gal. , 12.9 L |
| Battery |
12V 72Ah x 1 |
| Related Products |
DCA-45SSIU2 |
|
Standby Output |
37 kW , 47 kVA |
| Prime
Output |
36 kW , 45 kVA |
|
Generator RPM |
1800 RPMs |
|
Generator Design |
Revolving Field Self-Ventilated Dip-Proof Single
Bearing |
|
Voltage Regulation - (No Load to Full Load) |
1.5 %
|
| Power
Factor |
0.8 |
|
Armature Connection |
Star with Neutral / Zigzag |
|
Excitation |
Brushless with AVR |
| No.
Poles |
4 Pole |
|
Frequency |
60 Hz |
|
Available Voltages - 3 Phase |
208, 220, 240, 416, 440, 460, 480V Switchable Volts |
|
Available Voltages - Single Phase |
120, 127, 139, 240, 254, 277 Switchable Volts |
| Amps -
Single Phase 120V |
100 (4 Wire) 108x2 (Zigzg) Amps |
| Amps -
Single Phase 240V |
50 (4 Wire) 108 (Zigzg) Amps |
| Amps -
Three Phase 240V |
108 Amps |
| Amps -
Three Phase 480V |
54 Amps |
|
Insulation |
Class F |
| Sound
Level dB(A) - Full Load at 23 feet |
66 dB(A)
|
| Engine
Make / Model |
Isuzu 4BG1 |
|
Overall Length |
79 in. , 200 cm |
|
Overall Width |
35 in. , 90 cm |
|
Overall Height |
49 in. , 125 cm |
|
Approx. Net Wt. Dry |
2403 lbs. , 1090 kg. |
|
