This generator has an astounding range of
uses from the construction job site, hospitals and schools to movie
sets, stage productions, and outdoor concerts.
The generator delivers dependable, uninterrupted power that is as

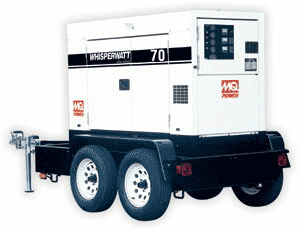

pleasing to the user as it is to the environment. The DCA-70USJ
operates at a whisper-quiet 60dBA full load at 23 feet and has a
standby output of 77kVA/61kW and prime output of 70kVA/56kW. This
electric-starting unit operates with the strength of a 90-horsepower
John Deere diesel engine that features improved fuel efficiency and
voltage regulation of 1 percent no load to full load. |
|
Performance Data |
| Standby Output: |
61 KW(77KVA) |
|
Prime Output: |
56 KW(70KVA) |
| Generator RPM: |
1800 |
|
Voltages - 3 phase: |
208, 220,
240, 416, 440, 460, 480V Switchable |
| Frequency: |
60 HZ |
|
Sound Level dB(A) - Full Load at 23 feet: |
60 |
| Amps |
Single Phase 120V: |
155.5 A (4 wire), 168 A x 2
(zigzag) |
| Single Phase
240V: |
77.8 A (4
wire), 168 A (zigzag) |
| Three Phase
240V: |
168A |
| Three Phase 480V: |
84A |
|
No. of poles: |
4-poles |
| Excitation: |
Brushless with AVR |
|
Voltages - Single phase: |
120, 127,
139, 240, 254, 277V Switchable |
| Armature
Connection: |
Star with neutral / Zigzag |
|
Voltage Regulation - (no load to full load): |
1.0% |
| Power Factor: |
0.8 |
|
Generator Design: |
Revolving
field Self-ventilated Dip-proof Single bearing |
| Frequency
Regulation: |
0.25% |
|
|
Power Source |
| Engine Make /
Model: |
John Deere 4045TF275 |
|
Starting System: |
Electric |
| Design: |
4-cycle Water cooled Direct
injection Turbocharger |
|
Displacement: |
4500 cc |
| No. cylinders: |
4 |
|
Bore x Stroke (mm): |
106 x 127 |
| Gross Engine Power
Output : |
113.0 |
|
HP at Rated Speed: |
90.0 |
| Fuel Tank Capacity: |
127 gal (480liter) |
|
Fuel Consumption |
Full load
gph(lph): |
5.0 (18.9) |
| 3/4 load gph(lph): |
3.5 (13.4) |
| 1/2 load gph(lph): |
2.4 (8.8) |
| 1/4 load
gph(lph): |
1.6 (5.9) |
| Coolant capacity
gal.: |
3.70 (14.0 liters) |
|
Oil capacity gal.: |
3.49 (13.2
liters) |
| Battery: |
12V 72Ah |
|
Dimensions |
| Overall Length: |
109 in. (277 cm.) |
|
Overall Width: |
49 in. (124
cm.) |
| Overall Height: |
71 in. (180 cm.) |
|
Aprox Net Wt lb(kg): |
4690 (2127) |
|
|
|
|
|
|
MULDCA70USI2C
$47,500.00 $34,336.80
"Up to 480V, 90 hp @ (Rated Speed), 99 hp (Gross), Isuzu diesel Tier III, 61 dB(A); w/ECU, EGS, 103 Gallon Fuel Tank (70KVA/56KW) :::: Call 800-458-3687 For Freight Pricing
